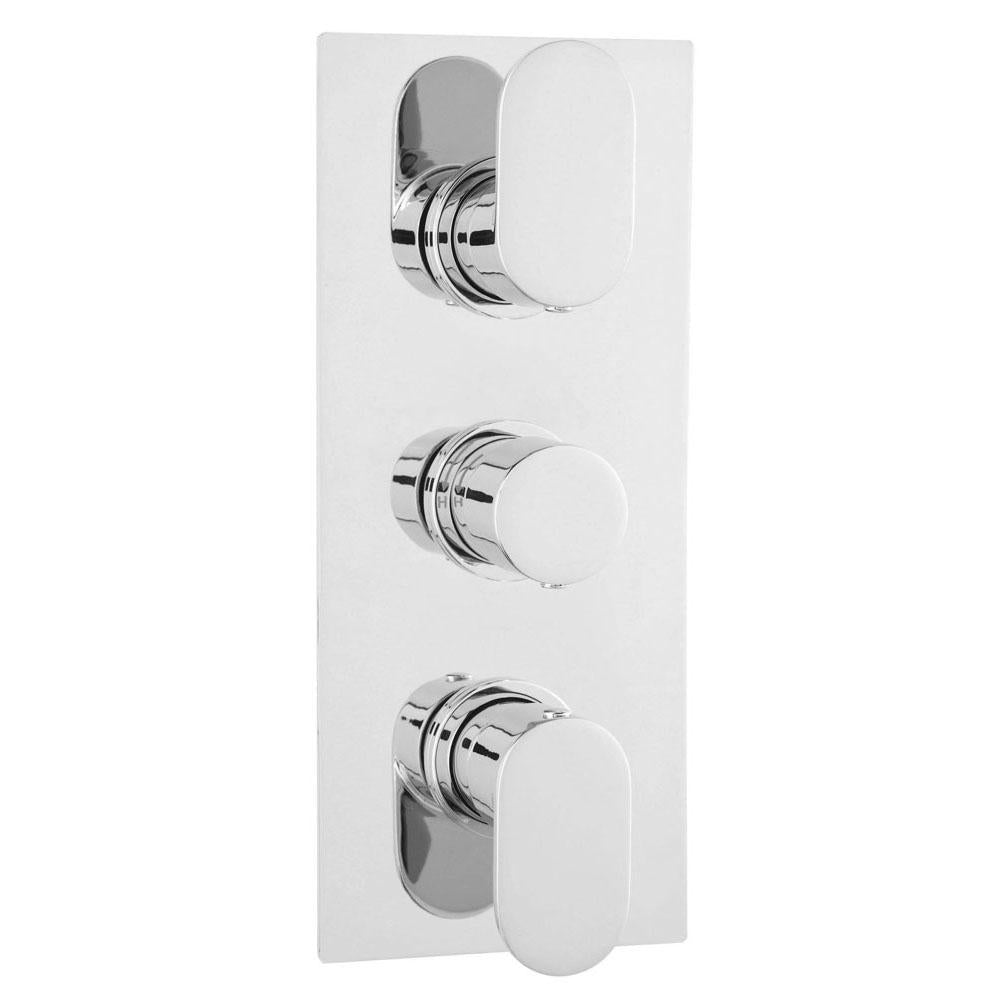

Hudson Reed Triple Thermostatic Shower Valve Chrome

Save £244.80
Original price £640.80
Current price £396.00
CODE: REI3611

Description

Product Details

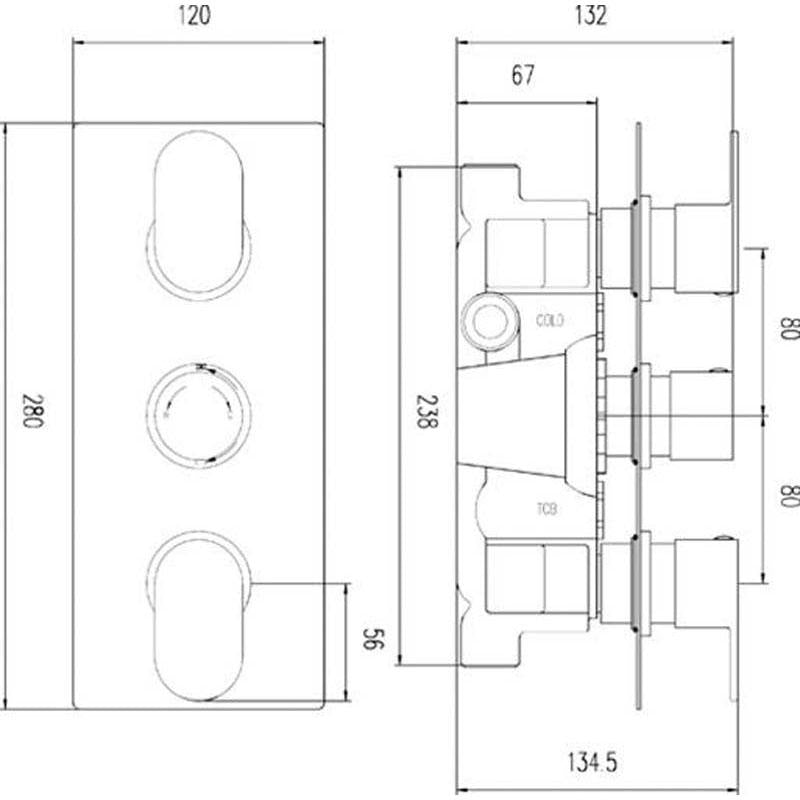

  • Height: 280 mm
  • Width: 120 mm
  • Depth: 135 mm
  • Finish: Chrome
  • Guarantee: 20 Year

Product Features

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS

Technical Specification

Product Material BRASS/ABS
Valve/Cartridge Type 1/4 Turn Ceramic Disc
Mount Type
  • Wall
  • Recessed
Head Included No
Handset Included No
Outlet Elbow Included No
Pipe Size 15 mm (1/2" BSP)
Operating Pressure 0.1
Flow Rate 0.1Bar l/m (Showers) 5.5
Flow Rate 0.5Bar l/m (Showers) 14
Flow Rate 1Bar l/m (Showers) 20
Flow Rate 2Bar l/m (Showers) 29
Flow Rate 3Bar l/m (Showers) 44
WRAS Approved (Showers) Yes
WRAS Approval Number (Showers) 1703023
TMV2 Approved (Showers) Yes
TMV3 Approved (Showers) Yes
TMV2 Approval Number (Showers) BC 1875 00817
TMV3 Approval Number (Showers) NSF 1938 1217
Valve Included Yes
Valve Handle Included Yes
Valve Handle Type/Shape
  • Lever Handle
  • Round Handle
No. Of Handles (Showers) 3
Valve Mount Type Concealed Shower
Shower Valve Style Shape Rectangular
Stain Rust Resistant Yes
Cartridge Included Yes
Commercial Use No
Installation Required Yes
No of Outlets 2
Flow Rate 0.2Bar 1/m (Showers) 7.1

Technical Specification of Triple Thermostatic Shower Valve With Diverter

Product Material BRASS/ABS
Pipe Centres 125MM
Valve/Cartridge Type 1/4 Turn Ceramic Disc
Mount Type Wall
Head Included No
Handset Included No
Pipe Size 22 mm (3/4" BSP)
Operating Pressure 0.5
Flow Rate 0.5Bar l/m (Showers) 13
Flow Rate 1Bar l/m (Showers) 17
Flow Rate 2Bar l/m (Showers) 24
Flow Rate 3Bar l/m (Showers) 27
WRAS Approved (Showers) No
TMV2 Approved (Showers) No
TMV3 Approved (Showers) No
Valve Included Yes
Valve Handle Included Yes
Valve Handle Type/Shape
  • Lever Handle
  • Round Handle
No. Of Handles (Showers) 3
Valve Mount Type Concealed Shower
Shower Valve Style Shape Rectangular
Stain Rust Resistant Yes
Cartridge Included Yes
Commercial Use No
Installation Required Yes
No of Outlets 3

Illustrated Code

REI3611

  • REI3611: Triple Valves Triple Thermostatic Shower Valve

REI3617

  • REI3617: Triple Valves Triple Thermostatic Shower Valve With Diverter

Downloads

Click for REI3611-Technical Specification

Click for New-REI3617-Technical Specification
