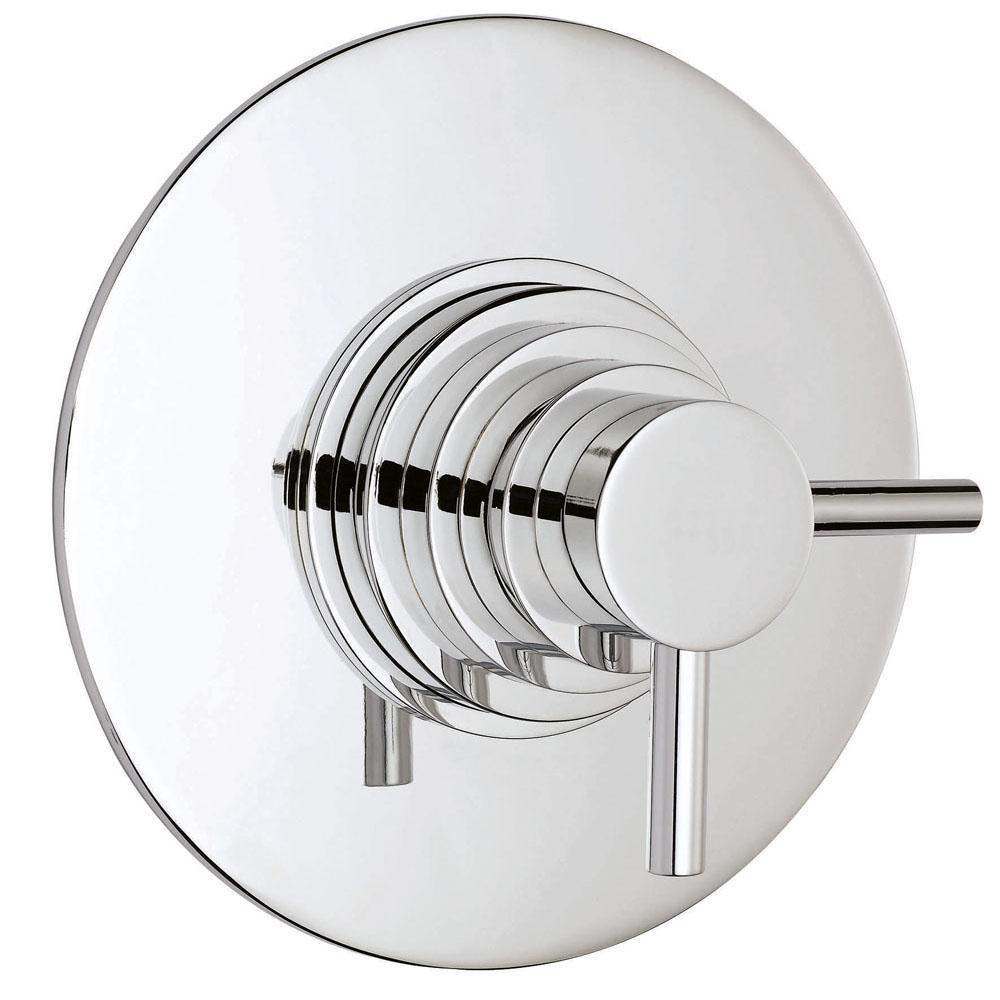

Hudson Reed Dual Concealed Thermostatic Shower Valve

Save £203.80
Original price £532.80
Current price £329.00
CODE: JTY025

Description

Product Details

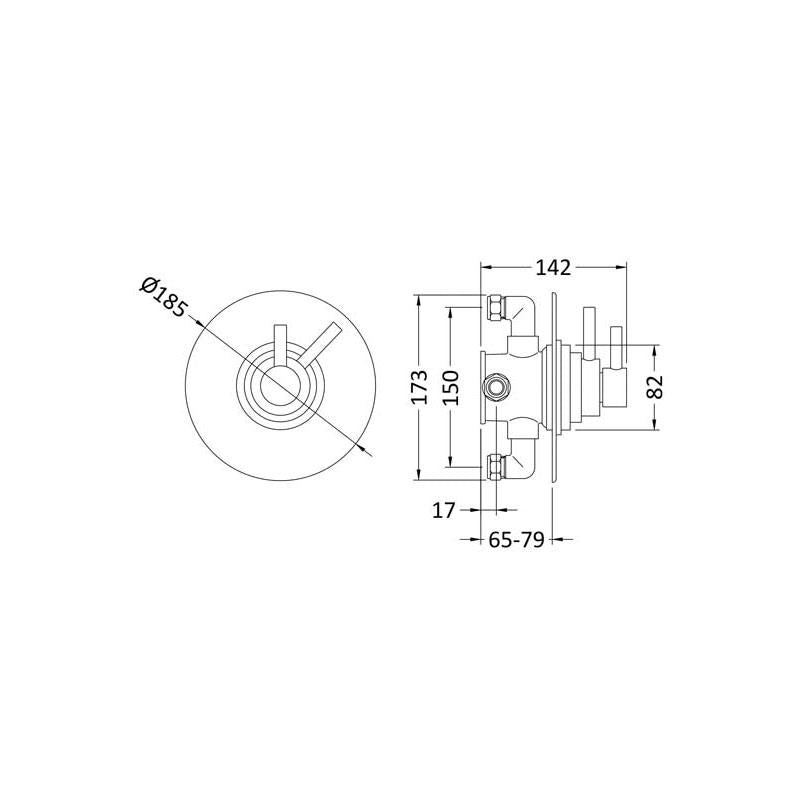

  • Height: 185 mm
  • Width: 185 mm
  • Depth: 142 mm
  • Finish: Chrome
  • Guarantee: 20 Year

Product Features

  • Minimalist sleek design
  • Accurate flow control
  • Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down within 1
  • 5 seconds
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from solid brass

Technical Specification

Product Material BRASS
Valve/Cartridge Type 1/4 Turn Ceramic Disc
Mount Type
  • Wall
  • Recessed
Head Included No
Handset Included No
Body Jets Included No
Outlet Elbow Included No
Pipe Size 15 mm (1/2" BSP)
Operating Pressure 0.1
Flow Rate 0.1Bar l/m (Showers) 5.5
Flow Rate 0.5Bar l/m (Showers) 14.5
Flow Rate 1Bar l/m (Showers) 22
Flow Rate 2Bar l/m (Showers) 30
Flow Rate 3Bar l/m (Showers) 35
WRAS Approved (Showers) No
TMV2 Approved (Showers) No
TMV3 Approved (Showers) No
Shower Head Shape Round
Valve Included Yes
Valve Handle Included Yes
Valve Handle Type/Shape Lever Handle
No. Of Handles (Showers) 2
Valve Mount Type Concealed Shower
Shower Valve Style Shape Round
Hose Included No
Stain Rust Resistant Yes
Cartridge Included Yes
Commercial Use No
Installation Required Yes
No of Outlets 1
Flow Rate 0.2Bar 1/m (Showers) 6.5

Illustrated Code

JTY025

  • JTY025: Dual Valves Concealed Thermostatic Shower Valve

Downloads

Click for JTY025-Fitting-Instruction

Click for JTY025Technical-Specification
