Description
- temperature and water flow control
- water flow control with stop outlet
- thermostatic mixer cartridge
- installation type: concealed installation

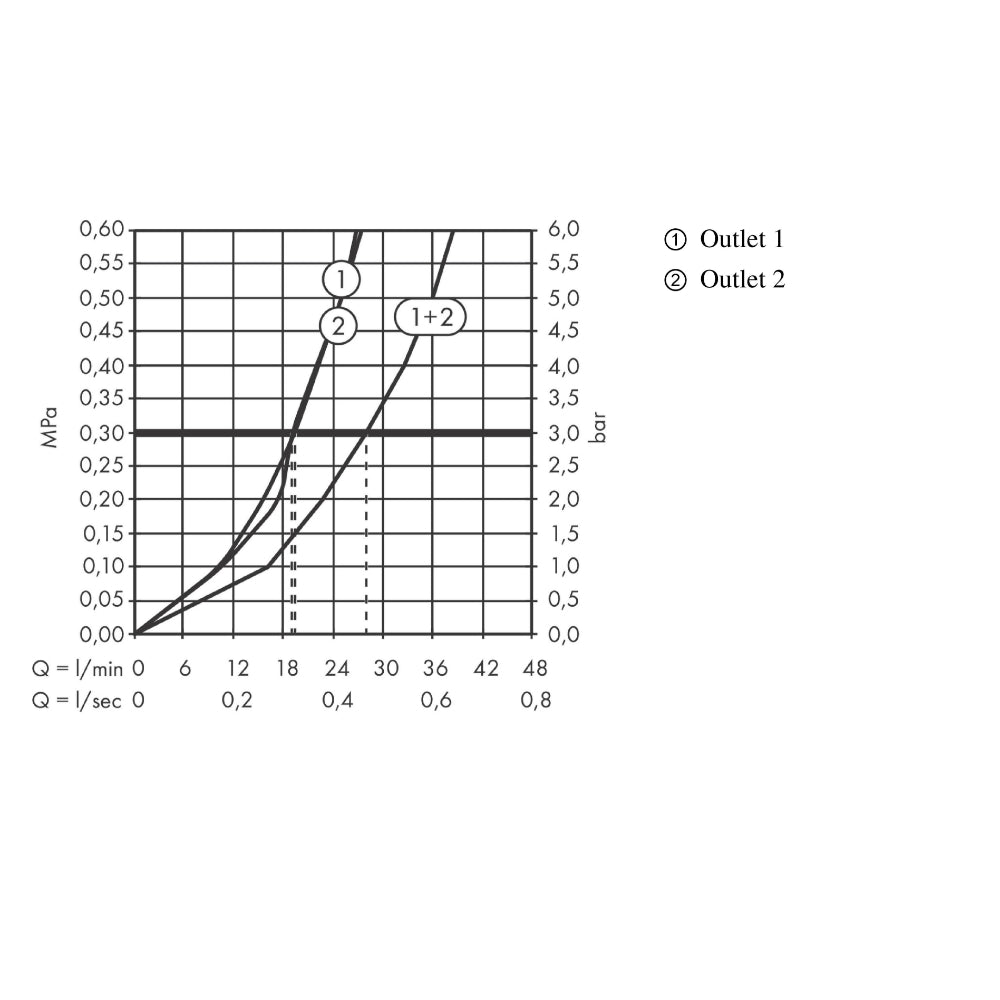

- maximum flow rate at 1 bar: 19,5 l/min
- maximum flow rate at 3 bar: 34,8 l/min
- flow rate upper outlet: 32 l/min
- flow rate lower outlet: 32 l/min
- flow rate by simultaneous use of all outlets: 34,8 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- flat escutcheon for more space in the shower
- escutcheon can be aligned by +/- 3°
- easy installation due to pre-assembled outlet block
- handles always at the same height regardless of the installation depth of the basic set
- Safety stop at 40 °C
- temperature limitation adjustable
- the thermostatic mixer offers the possibility for thermal disinfection
- material handles: metal
- connection type: basic set iBox universal 2 (# 01500180)
- noise class: I
- WRAS 2312022
- REG4 2510704
Thermostat
Always constant water temperature
Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.TMV2 - A thermostatic mixing valve, with a maximum temperature stop
The TMV2 Scheme is the third party valve accreditation programme administered by Buildcert, testing valves and certifying their suitability for use in the domestic market.
WRAS (Water Regulations Advisory Scheme)
The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Click for Assembly instruction (Finish Set)
Click for Assembly instruction (TMV)
Click for Service instruction ( Cleaning Recommendation)
Click for Declation of conformity/performance

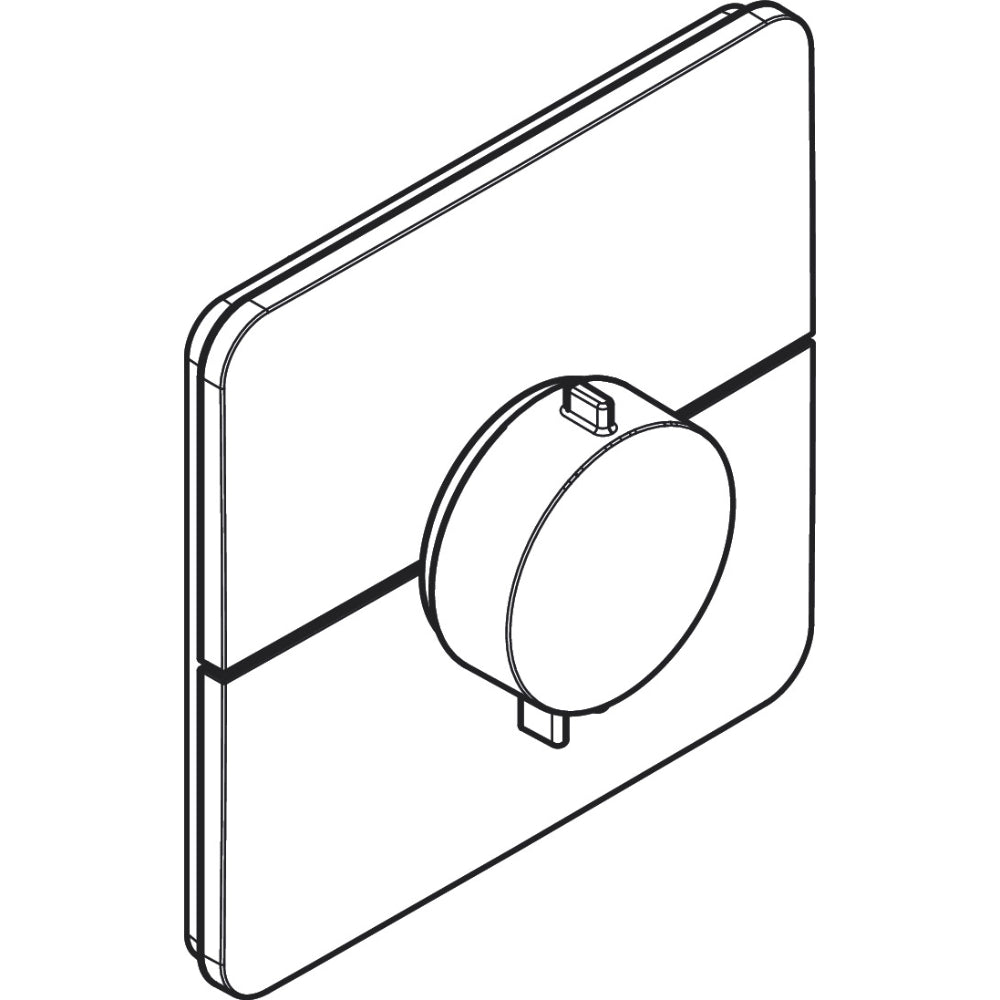

Illustrated Code
|
15588000
|
15588140
|
|
15588340
|
15588670
|
|
15588700
|
