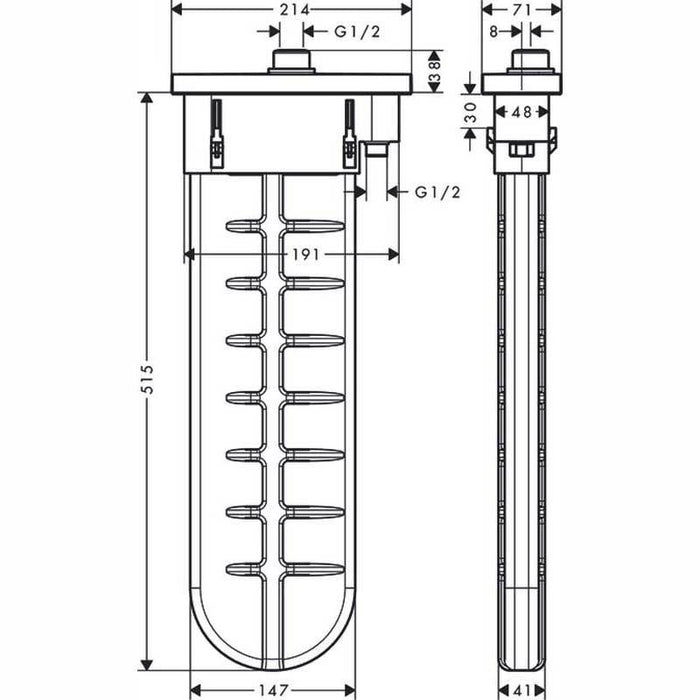

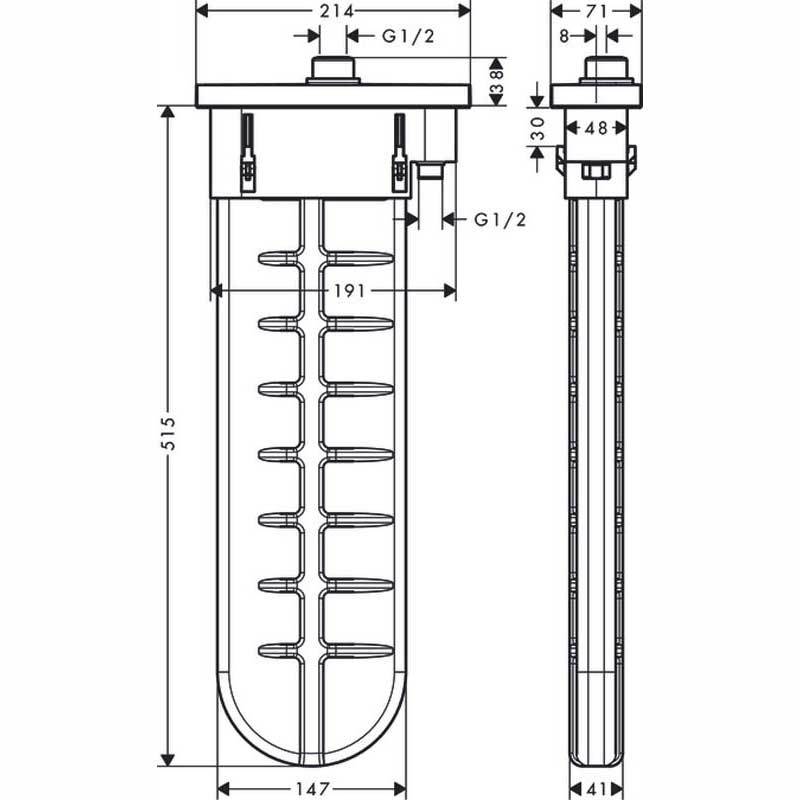

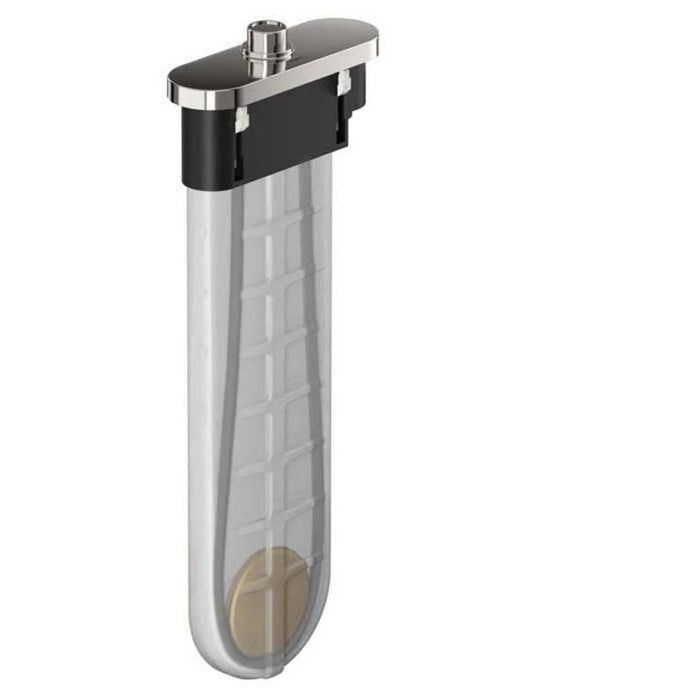

Hansgrohe Sbox - Finish Set Oval

$2,116.00
CODE: 28020000+13560180+28016000

Description

Product Features
  • Consists of: hose box, shower hose, escutcheon
  • Suitable for rim mounted or tile surround installation
  • Designed to run 1 function
  • SBox for quiet, smooth and protected hose guidance
  • Flow rate (at 3 bar): 9.5 l/min
  • Operating pressure: min. 1 bar/max. 10 bar
  • Bath rim width at least 100 mm
  • Clamping range: 0 - 30 mm
  • Maximum pull-out length of hand shower 1.45 m
  • Removable for service at any time
  • Protected against backflow for domestic use (according to DIN EN 1717)
  • WRAS 1907041

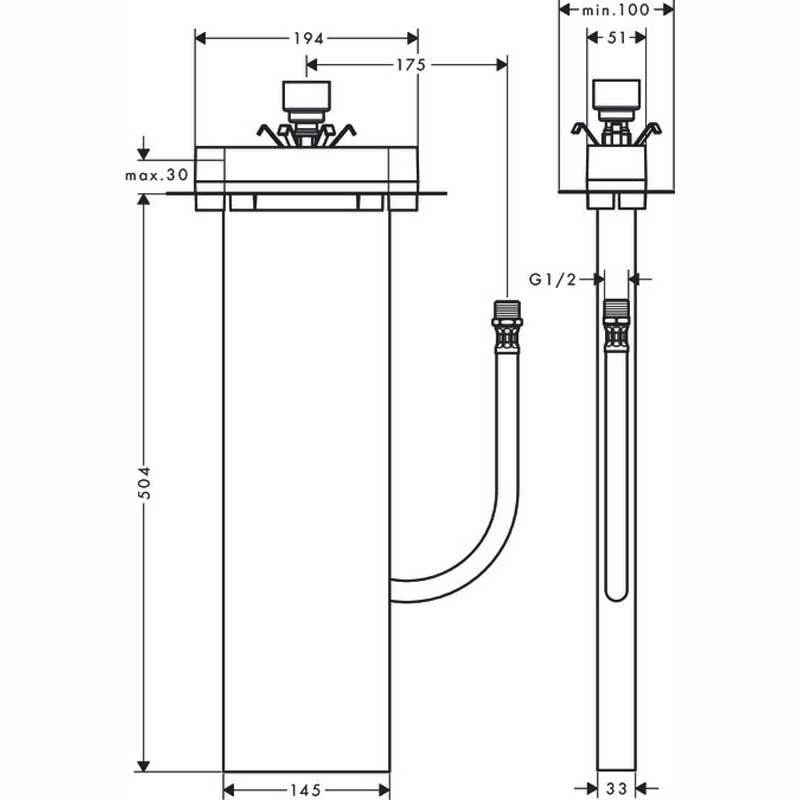

Product Features of Bath Basic Set
  • Suitable for rim mounted or tile surround installation
  • Designed to run 1 function
  • Connection thread ½"
  • Connection hose length: 600 mm
  • Operating pressure: min. 1 bar/max. 10 bar
  • Bath rim width at least 100 mm
  • Drilling diameter on bath tub or tiled surround: two drilled holes Ø 50/51 mm and connection by sawing out required
  • Clamping range: 0 - 30 mm
  • WRAS 1907041

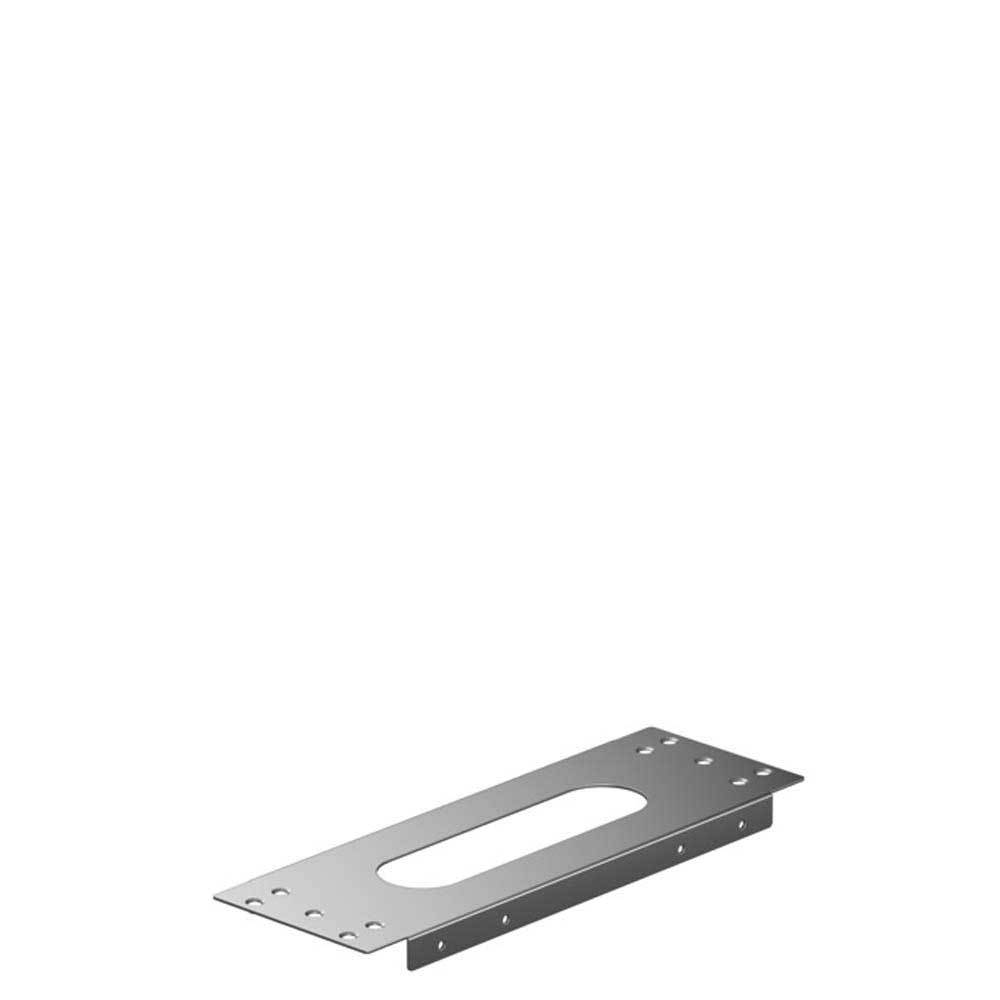

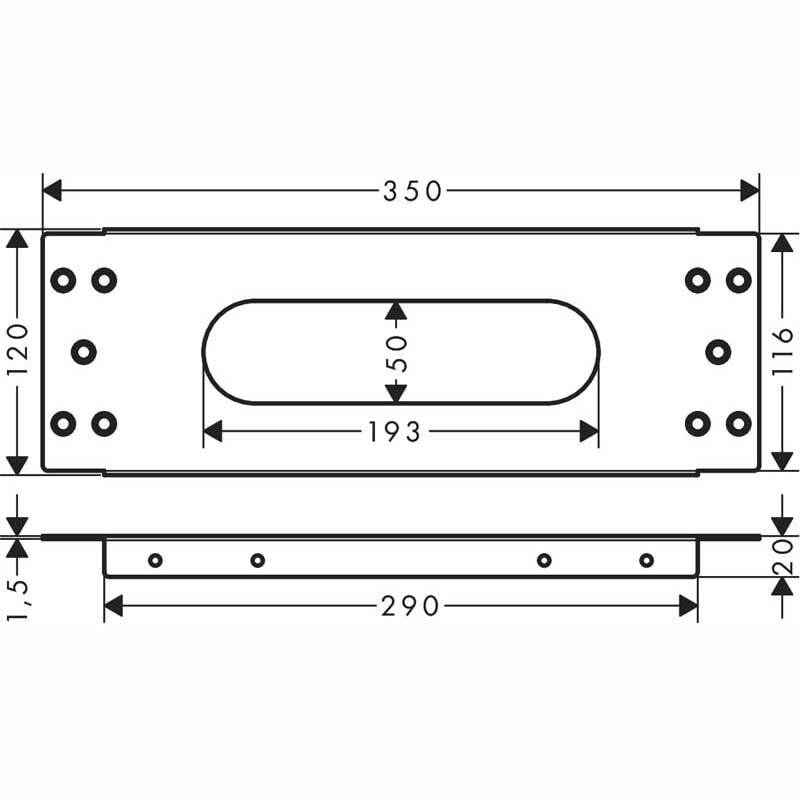

Product Features of Sbox - Installation plate
  • Dimension: 350 x 120 mm

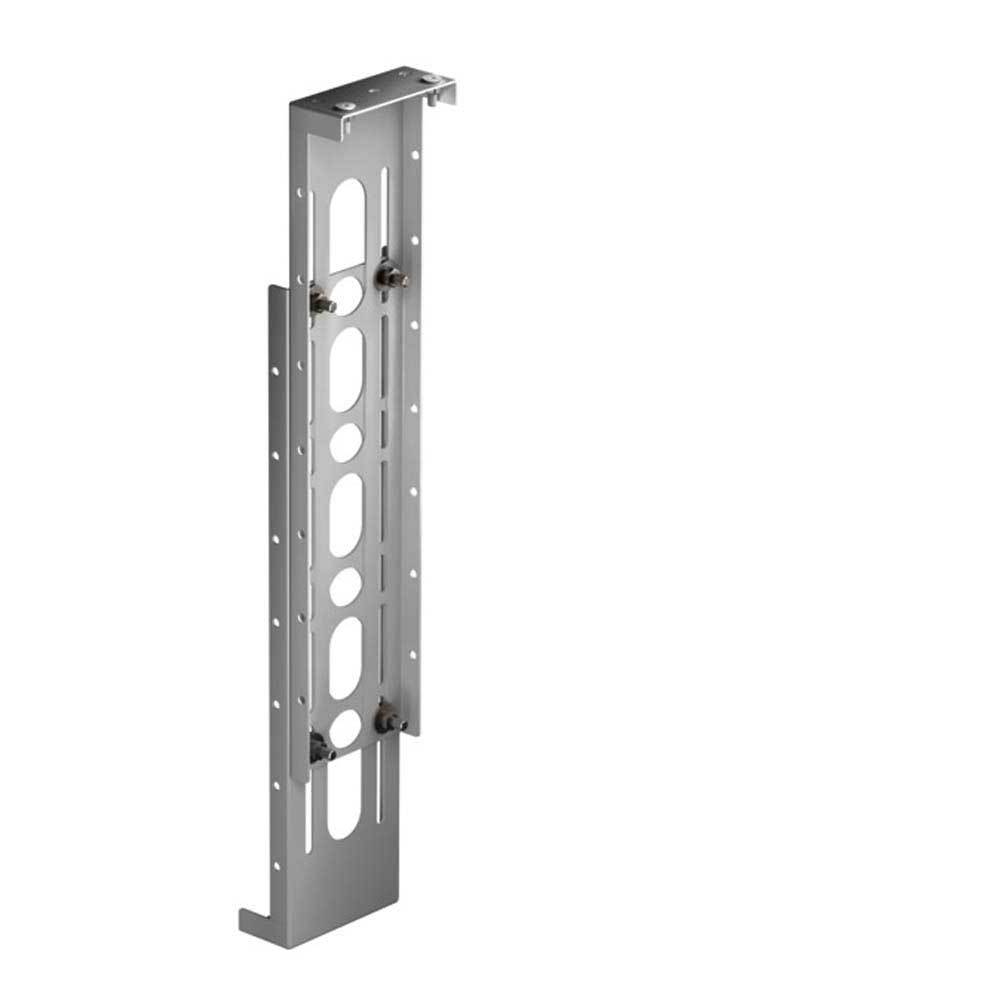

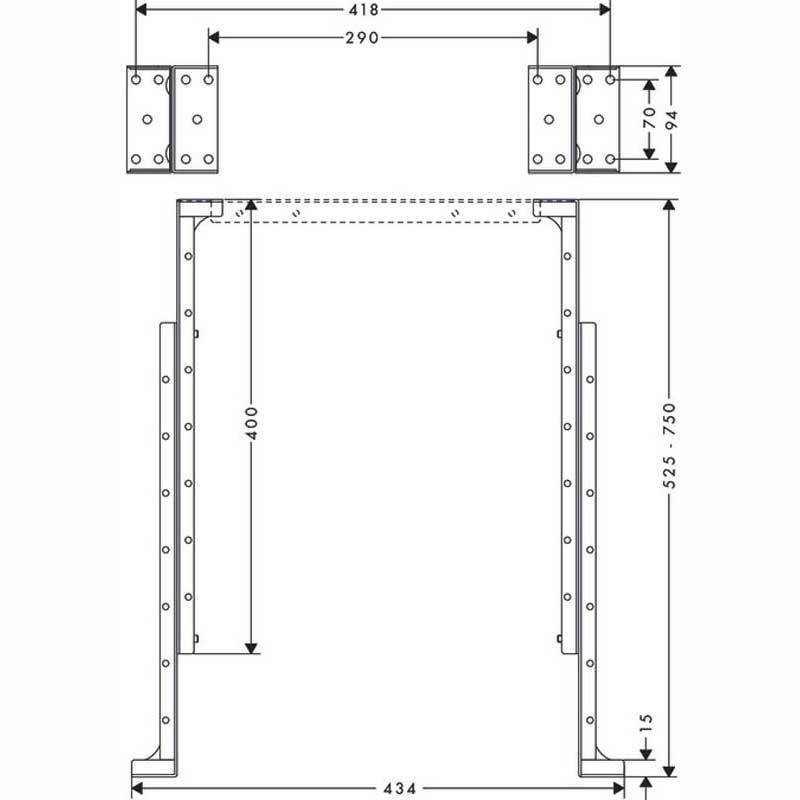

Product Features of Sbox - Mounting angle set
  • Minimum mounting height: 400 mm
  • Maximum mounting height: 750 mm
  • Packing unit: 2 pieces

Illustrated Code

28020000+13560180+28016000

  • 28020000: Finish Set Oval - Chrome
  • 13560180: Rim And Tile Mounted Bath Basic Set
  • 28016000: Installation Plate For Tile Mounted Installation

28020000+13560180+28021000

  • 28020000: Finish Set Oval - Chrome
  • 13560180: Rim And Tile Mounted Bath Basic Set
  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

28020000+13560180

  • 28020000: Finish Set Oval - Chrome
  • 13560180: Rim And Tile Mounted Bath Basic Set

28020000+28016000

  • 28020000: Finish Set Oval - Chrome
  • 28016000: Installation Plate For Tile Mounted Installation

28020000+28021000

  • 28020000: Finish Set Oval - Chrome
  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

28020000

  • 28020000: Finish Set Oval - Chrome

13560180+28016000

  • 13560180: Rim And Tile Mounted Bath Basic Set
  • 28016000: Installation Plate For Tile Mounted Installation

13560180+28021000

  • 13560180: Rim And Tile Mounted Bath Basic Set
  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

13560180

  • 13560180: Rim And Tile Mounted Bath Basic Set

28016000

  • 28016000: Installation Plate For Tile Mounted Installation

28021000

  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

Downloads

Click for 28020000 Data Sheet

Click for 13560180 Data Sheet

Click for 28016000 Data Sheet

Click for 28021000 Data Sheet
