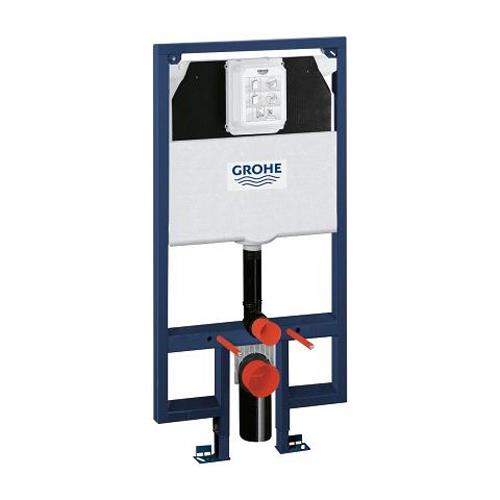

Grohe Rapid SL Installation System Set for WC with Flushing Cistern

by Grohe
Save $105.00
Original price $666.00
Current price $561.00
CODE: 38994000

Description

Product Description

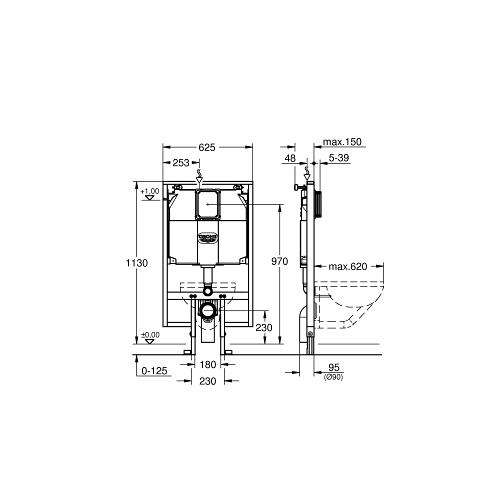

  • For small, narrow bathrooms
  • Flushing cistern 80 mm
  • 1.13 m finished installation height
  • Element width 0.62 m
  • For on-the-wall installations or studded walls
  • Includes
  • Frame/cistern for wall hung pan
  • Wall brackets for on-the-wall installation (38 558 00M)
  • Fixing bolts for wc and floor
  • Details: 200mm height adjustment, lockable when at required height
  • Distance of fixing bolts 180/230 mm
  • Outlet bend ø 90 mm
  • Depth adjustable
  • Reducer ø 90/110 mm
  • Insulated against condensation
  • Water supply from top or back
  • Water supply 1/2" and push fit flexible hose union
  • For mounting of small flush plates please order revision shaft 40 911 000 (sold separately)

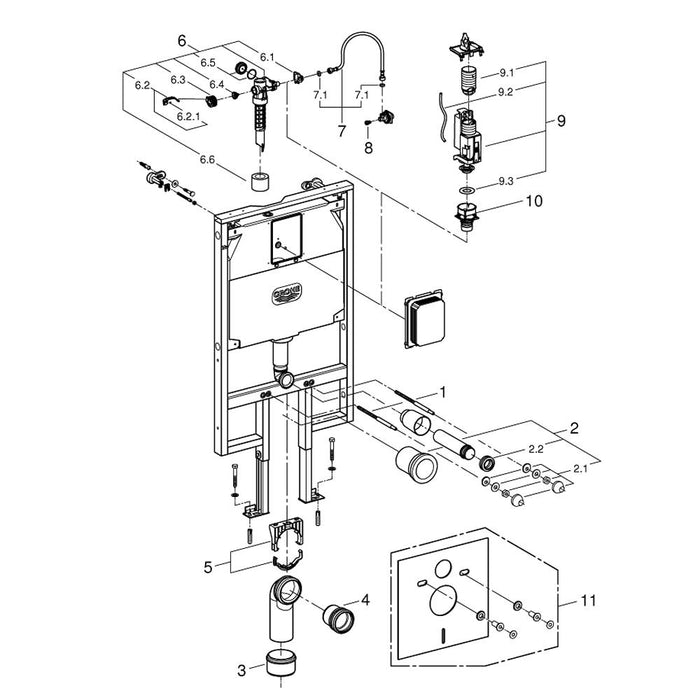

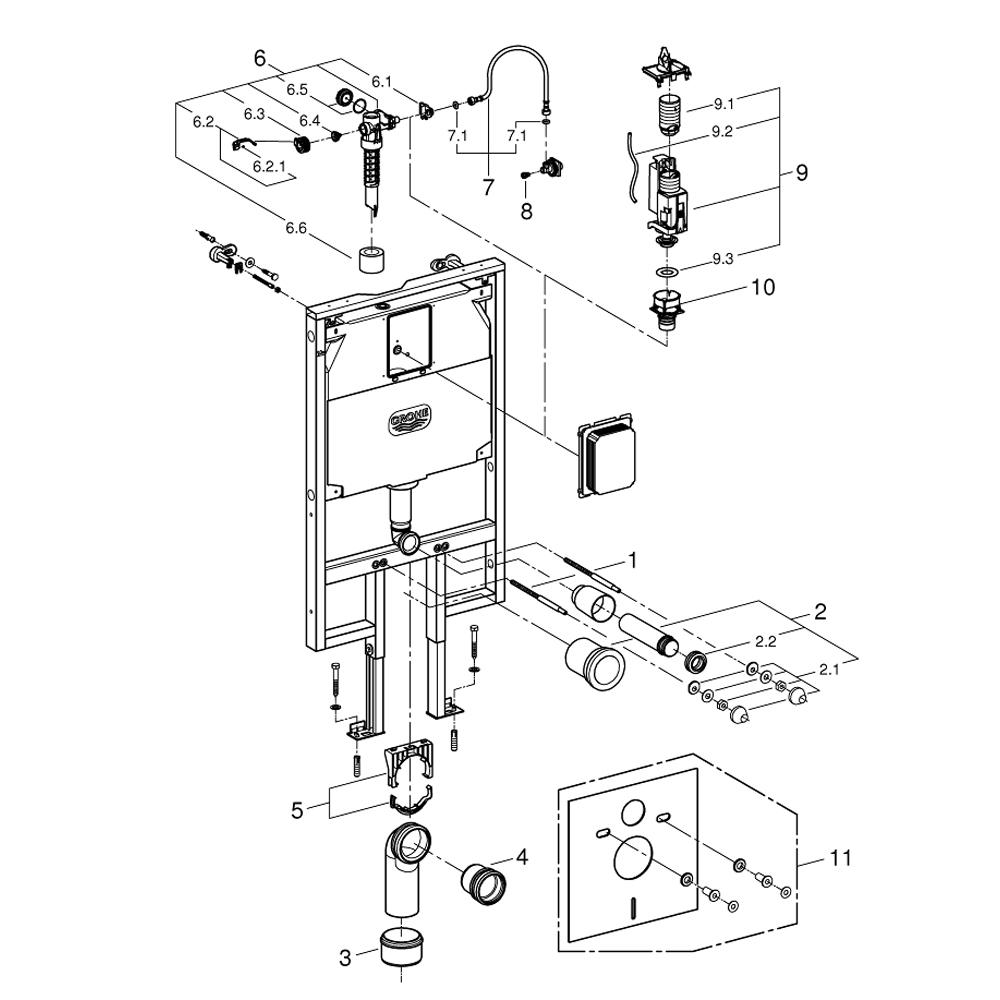

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Threaded bolt, 2 pcs.f.Uniset 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 4" outlet adaptor for Rapid SL 42242000
4 Distance pipe 3" 42766000
5 Support for outlend bend 42243000
6 Filling valve 43991000
6.1 Valve support 43995000
6.2 Lever 43734000
6.2.1 Sealing washer 4377000M
6.3 Valve head 43536000
6.4 Membrane 4375800M
6.5 Screw cap 43735000
6.6 Valve FLOAT, 5 pcs.. 4379100M
7 connecting hose 42233000
7.1 O-Ring 0319100M
8 Headpart 42385000
9 Dual Flush discharge valve AV1 42320000
9.1 Extension for overflow pipe 42313000
9.2 Pneumatic hose 42319000
9.3 Sealing washer 42310000
10 Valve seat for GD2 42315000
11 Set for noise protection 37131000*

Downloads

Click for Specification Sheet

Click for Technical Product Information

Click for Technical Product Information
