Description
Product Description

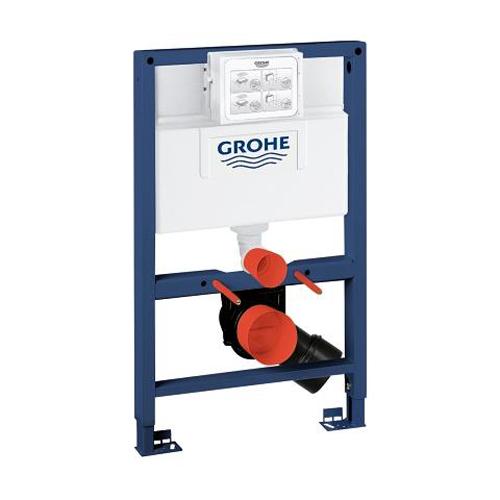

This installation system of the Rapid SL range provides maximum comfort for your bathroom, in every respect: with the GROHE QuickFix system, it can be installed rapidly in front of a solid wall or in a stud wall - even below windows thanks to its low height. If required, please purchase the 3855800M wall bracket to install this system. For perfect safety, its self-supporting steel frame is certified to hold loads of over 400 kg. Cleaning your bathroom will be easier than ever once the wall-hung toilet and concealed tank are in place. The GROHE Whisper noise control prevents sound transmission to adjoining rooms. With the GROHE EcoJoy dual flush system, your water consumption will be reduced by up to 50%. Flush plates are available in over 130 different designs to suit the style of your bathroom.
Product Highlights
The GROHE Whisper concealed cistern guarantees noise controlWith its low-noise fittings and decoupled piping, GROHE Whisper technology prevents sound travelling through walls. The low noise level of only 21 dB(A) undercuts the standard requirement of 24 dB(A) so you will enjoy total peace and quiet!
Save water and save money with GROHE EcoJoyIts time to cut your water usage - and your water bill - by up to 50% with GROHE EcoJoy flush technology. Select a flush volume of either 3l or 6l (or 3l and 4.5l, depending on the ceramic body) and, if you want, stop a full flush before its over.
A concealed system thats simple to install - thats GROHE QuickFixGROHE QuickFix makes installing a concealed system quick and easy. In a test of installation times carried out by Germany's REFA association it outperformed competitors by up to 155%!
GROHE Rapid SL toilets can take a load of 400 kgSafety is the name of the game with your GROHE Rapid SL installation system. The steel frames of the wall-hung toilets and basins are certified to hold up to 400 kg and 150 kg, respectively.
Connect with ease in seconds - thats ToolFreeNo tools are needed to connect your water supply, flexible hose and inspection shaft. Thats our innovative ToolFree concept.
Added flush volume for a more effective flushGive the flush on your toilet a boost with the GROHE SpareFlush system, which provides an extra 3l of water - even in buildings with old plumbing.
Connect the flush plate and drain valve easily with EasyConnectTheres no need to measure or cut the hose because it simply plugs onto the drain valve and flush plate. Smart and simple. Thats EasyConnect.
Concealed cistern connection made simple!With our VarioPort system you the supply hose to the water supply at four points: front, rear, left and right. Simple. Fast. No hassle.
The choice of 130 complementary designsThe universal base plate matches all our flush plates so you can choose from over 130 attractive designs. They are also easy to install and can be mounted either horizontally or vertically.
Easy installation with a single drain valveWith a single drain valve for all flush modes - including single flush, dual flush and start-stop technology - mounting the installation system is quick and easy.

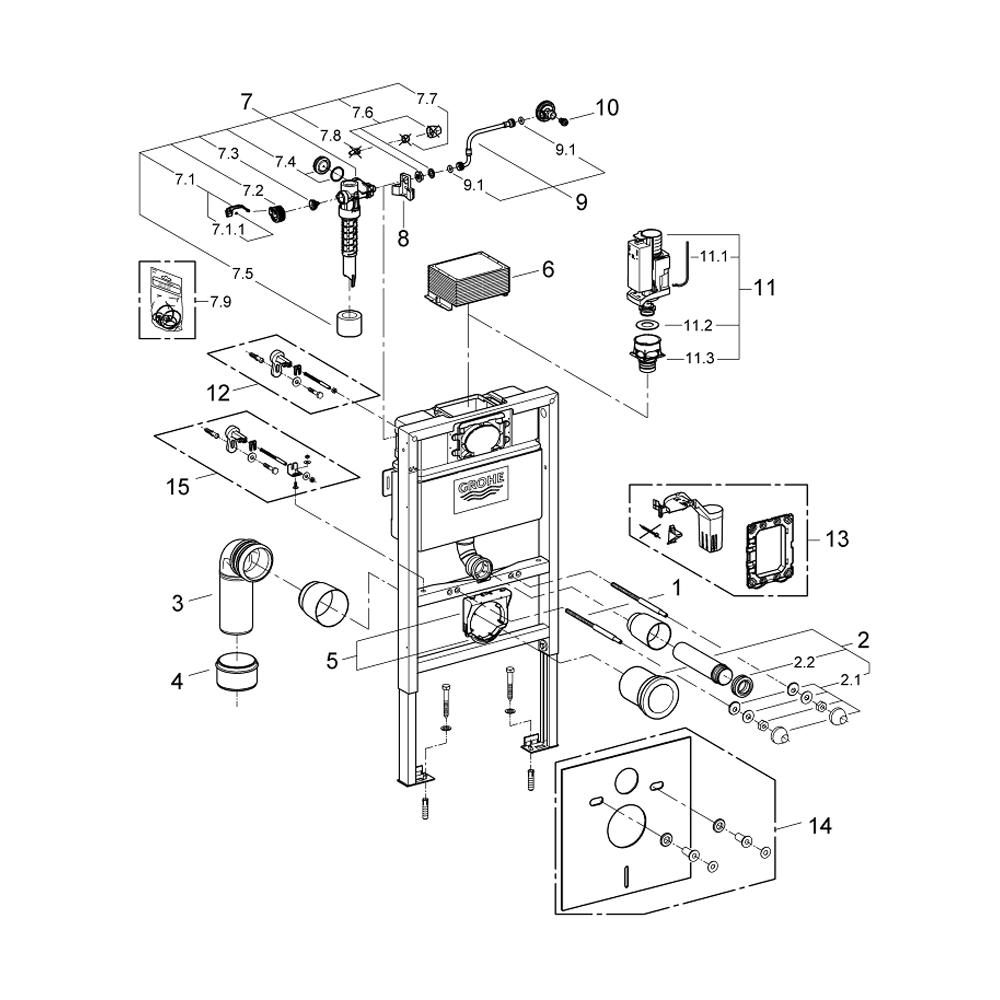

Spare Parts
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Threaded bolt, 2 pcs.f.Uniset | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | PP-outlet bend ø 90 mm | 42327000 |
4 | 4" outlet adaptor for Rapid SL | 42242000 |
5 | Support for outlend bend | 42243000 |
6 | inspection shaft for flushing cistern 0.82 m | 42326000 |
7 | Filling valve | 37095000 |
7.1 | Lever | 43734000 |
7.1.1 | Sealing washer | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve FLOAT, 5 pcs.. | 4379100M |
7.6 | Dummy plug and escutcheon cap | 37125000 |
7.7 | Compression nut | 43258000 |
7.8 | Throttle | 42356000 |
7.9 | Repl.kit f.seal | 43722000* |
8 | Support device | 42195000 |
9 | Overflow Sleeve | 43325000 |
9.1 | O-Ring | 0319100M |
10 | Headpart | 42385000 |
11 | AV1 complete | 42314000 |
11.1 | Pneumatic hose | 42319000 |
11.2 | Sealing washer | 42310000 |
11.3 | Valve seat for GD2 | 42315000 |
12 | Rapid SL Front wall brackets | 3855800M* |
13 | GROHE Fresh retro-fit set | 38796000* |
14 | Set for noise protection | 37131000* |
15 | Rapid SL mounting angle | 38733000* |
Downloads
Click for Technical Product Information
Click for Technical Product Information
Click for Technical Product Information
Click for Technical Product Information
