Description
Product Description
- 6 l 3 l,Dual Flush
- Water supply from left/right or back
- Including integrated angle valve
- And push fit flexible hose union
- With angle stop valve 1/2" and flush pipe
- Fixing brackets
- Min. recommended pressure 0.2 bar
- Air button
- Front/top actuation
- Extended hose length for flexibility when
- Positioning the actuation
- Sleek and minimal styling allows the button
- To be fitted in any 360° orientation
- GROHE EcoJoy technology for less water and perfect flow

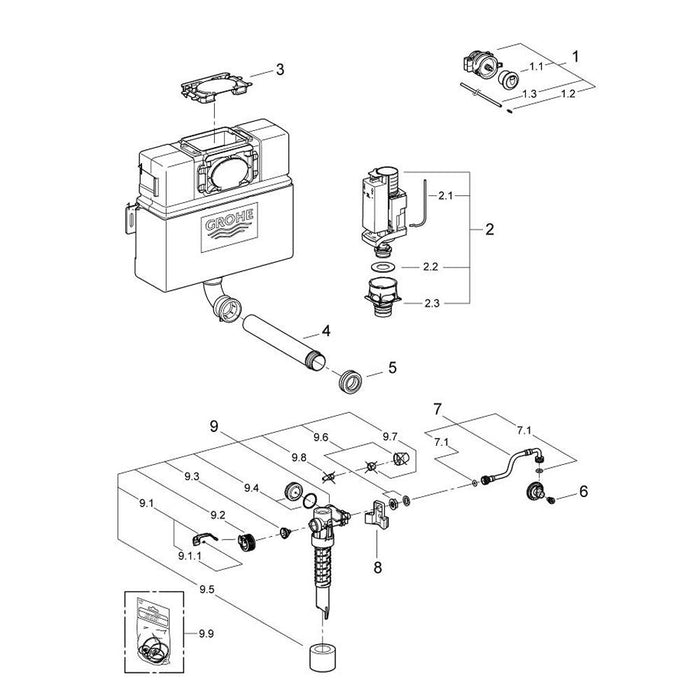

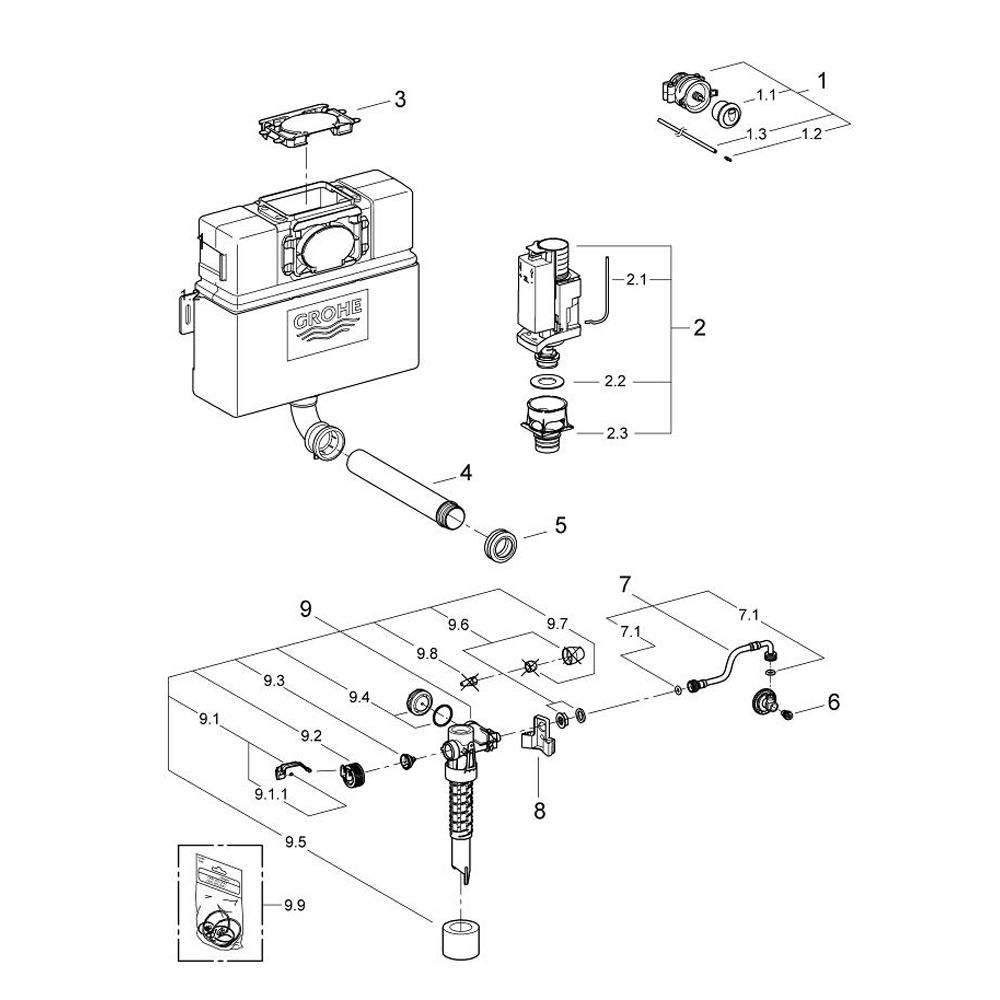

Spare Parts
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Pneumatic push button actuation | 38771000 |
1.1 | Push button and escutcheon | 42311PI0 |
1.2 | Nipple | 4227100M |
1.3 | Tubes | 42775000 |
2 | AV1 complete | 42314000 |
2.1 | Pneumatic hose | 42319000 |
2.2 | Sealing washer | 42310000 |
2.3 | Valve seat for GD2 | 42315000 |
3 | Protective plate | 42199000 |
4 | Flush pipe 300 mm | 43352000 |
5 | Connector | 37119000 |
6 | Headpart | 42385000 |
7 | Overflow Sleeve | 43325000 |
7.1 | O-Ring | 0319100M |
8 | Support device | 42195000 |
9 | Filling valve | 37095000 |
9.1 | Lever | 43734000 |
9.1.1 | Sealing washer | 4377000M |
9.2 | Valve head | 43536000 |
9.3 | Membrane | 4375800M |
9.4 | Screw cap | 43735000 |
9.5 | Valve FLOAT, 5 pcs.. | 4379100M |
9.6 | Dummy plug and escutcheon cap | 37125000 |
9.7 | Compression nut | 43258000 |
9.8 | Throttle | 42356000 |
9.9 | Repl.kit f.seal | 43722000* |
