Description
Characteristics
- Adjustable in depth
- Concealed cistern with front actuation
- Concealed cistern fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Immediate post flush possible with factory setting
- Welded flush bend
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the left or rear left
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length
Technical data
- Flow pressure : 0.1-10 bar
- Maximum operating temperature, water : 25 °C
- Flush volume, factory setting : 5.8 and 3 l
- Flush volume large, adjustment range : 4.5 / 6 / 7.5 l
- Flush volume small, adjustment range : 3-4 l
- Calculated flow rate : 0.11 l/s
- Minimum flow pressure for calculated flow rate : 0.5 bar

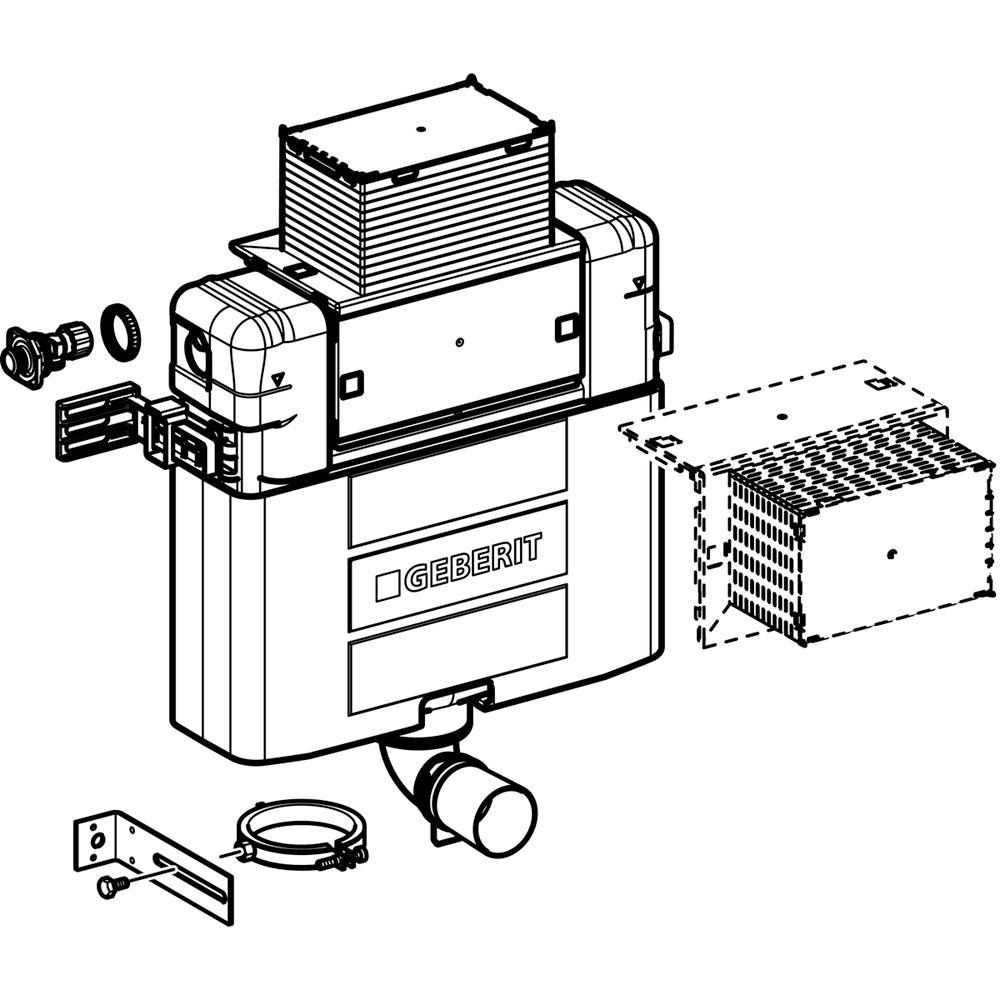

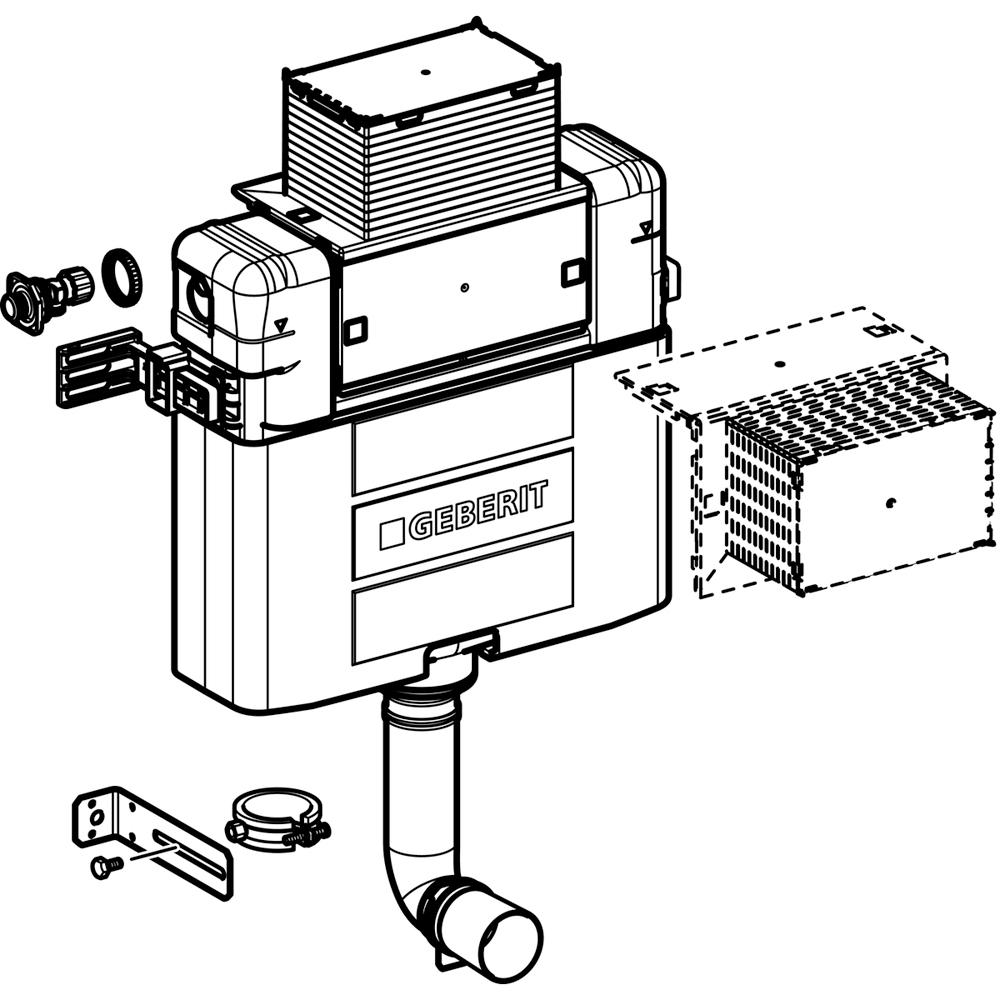

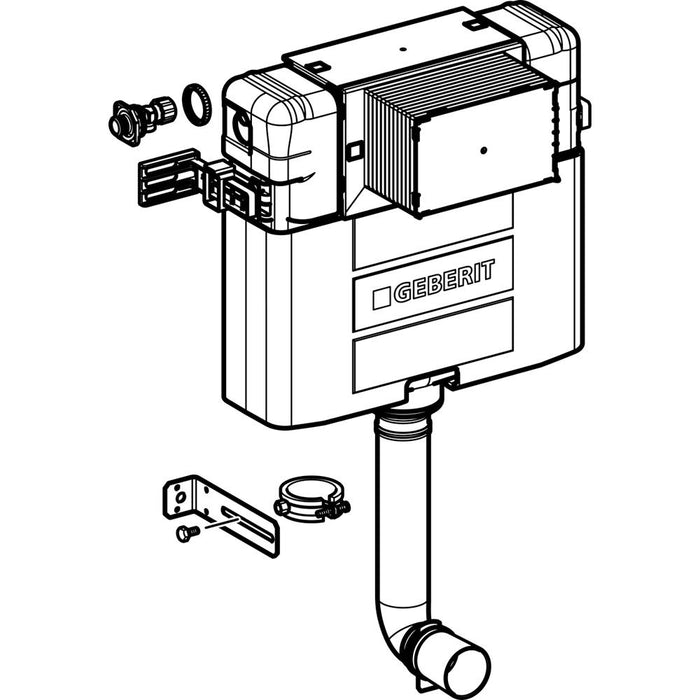

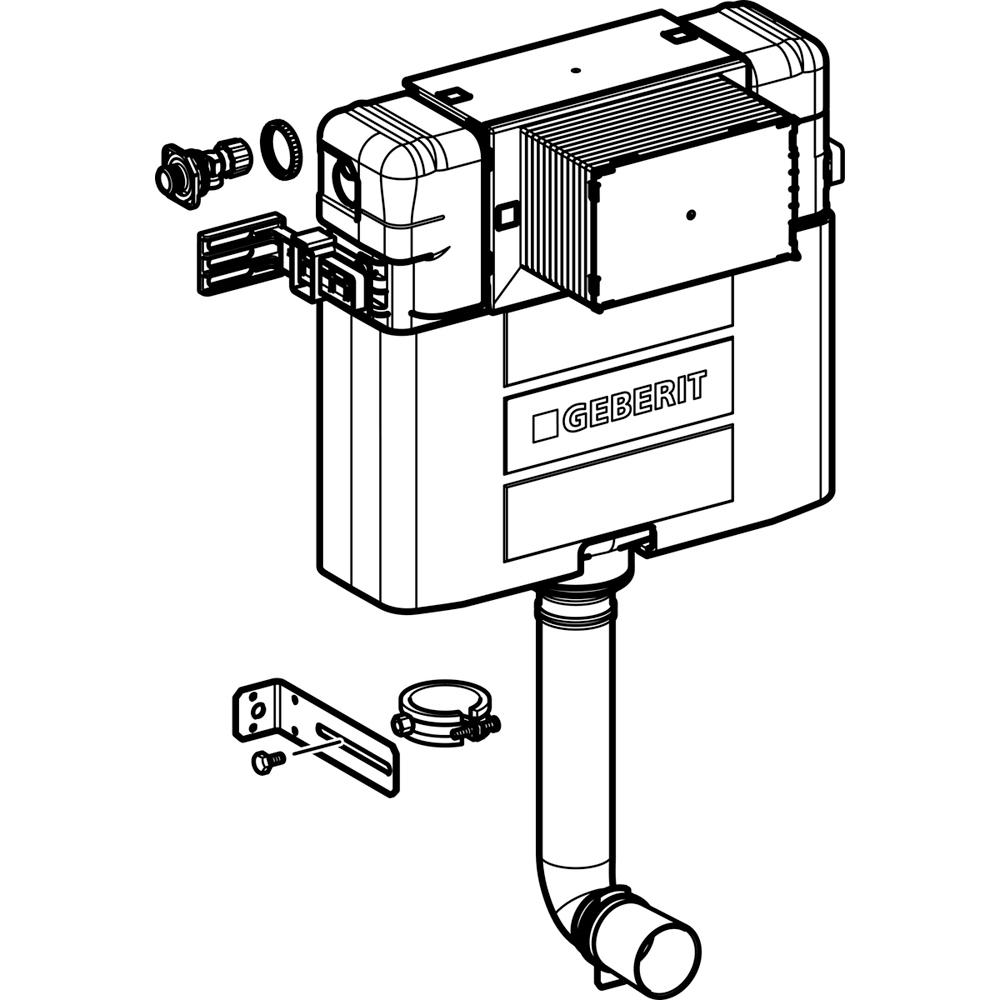

Scope of delivery
- Water supply connection Rp 1/2" - R?1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
- Protection box for service opening
- Flush bend extension, ø 45 mm
- Fastening for flush bend
- Protection plug
- Cup for flush volume reduction 4.0 / 2.6 l
- 2 fixing brackets
- Fastening material
Application purposes
- For masonry walls
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For floor-standing and wall-hung WCs
Spare Parts
Art. No. | Description |
632.001.00.1 | Geberit MeplaFix adaptor: Material=Brass CW617N, d=MF20mm, Rp=1/2" |
240.269.00.1 | Geberit water supply connection with integrated angle stop valve |
241.857.00.1 | Geberit counternut |
240.629.00.1 | Reinforced braided hose for Geberit Kappa concealed cistern 15 cm |
241.819.00.1 | Reinforced braided hose, WRAS, for Geberit concealed cisterns 12 /15 cm |
240.922.00.1 | Geberit set of seals for reinforced braided hose |
243.088.00.1 | Mounting clip for Geberit fill valve type 380 and Geberit Omega concealed cistern |
242.984.00.1 | Geberit fill valve type 380, lateral water supply connection, 3/8", nipple made of brass |
Geberit fill valve type 380, side connection | |
243.089.00.1 | Protection plate for Geberit Omega concealed cistern |
243.091.00.1 | Support block for Geberit Omega concealed cistern |
243.092.00.1 | Protection box for service opening, for Geberit Omega concealed cistern |
243.093.00.1 | Insertion plate for Geberit Omega concealed cistern |
243.094.00.1 | Flush valve and basket, for Geberit Omega concealed cistern |
243.095.00.1 | Flush valve for Geberit Omega concealed cistern |
816.418.00.1 | Flat gasket for Geberit flush valves of exposed and concealed cisterns |
241.167.00.1 | Flush valve bracket for Geberit flush valves |
243.096.00.1 | Basket for Geberit Omega concealed cistern |
243.139.00.1 | Throttle for basket of Geberit Omega concealed cistern |
241.868.00.1 | Geberit section seal for basket |
362.796.92.1 | Geberit protection plug: d=44.6mm |
362.771.00.1 | Lip seal for Geberit flush pipe: d=45mm |
241.378.00.1 | Geberit flush pipe fastening |
243.097.00.1 | Flush bend fastening for Geberit Omega concealed cistern, installation height 82 cm |
241.026.00.1 | Geberit fixing bracket 12 cm |
889.711.00.1 | Geberit fixing slider |
241.526.00.1 | Geberit angle stop valve |
240.298.00.1 | Geberit regulation spindle for angle stop valve |
240.623.00.1 | Geberit counternut |
