Geberit Monolith Plus 114cm Sanitary Module for Wall Hung WC

by Geberit
Save £374.04
£3,123.04
£2,749.00
CODE: 131.231.SI.5
Read Full Description

Description

Characteristics

  • Dual flush
  • Compensation of dimensional tolerances possible
  • Height-adjustable up to 7 cm
  • Front cladding made of glass (ESG)
  • Fastening height WC ceramic appliance 35 ± 1 cm
  • Cistern fully insulated against condensation
  • Side cladding made of aluminium brushed
  • Self-supporting
  • Adjustable flush volume
  • Soft-touch buttons for flush actuation and odour extraction
  • Orientation light and odour extraction activated when a user approaches
  • Orientation light can be set in seven colours
  • User detection range can be set
  • Day/night detection can be set for orientation light
  • Odour extraction unit with ceramic honeycomb filter can be installed without tools
  • Ceramic honeycomb filter for odour neutralisation can be replaced without tools
  • Odour extraction unit automatically switches off after a predefined running time
  • Operation with extra-low voltage, no mains voltage in cistern
  • Mains connection with flexible three-wire sheathed cable
  • Water supply connection on the rear centre
  • Water supply connection on the left/right possible with accessories
  • Water supply connection on the bottom

Technical data

  • Protection class : I
  • Protection degree : IPX4
  • Nominal voltage : 100-240 V AC
  • Mains frequency : 50-60 Hz
  • Operating voltage : 4.1 V DC
  • Power consumption : 5 W
  • Flow pressure : 0.1-10 bar
  • Maximum operating temperature, water : 25 °C
  • Flush volume, factory setting : 6 and 3 l
  • Flush volume large, adjustment range : 4.5 / 6 l
  • Flush volume small : 3 l
  • Calculated flow rate : 0.11 l/s
  • Minimum flow pressure for calculated flow rate : 0.5 bar

Scope of delivery

  • Water supply connection set with 2 angle stop valves, 1/2"
  • Flush bend extension 160 mm
  • Sleeve made of EPDM,?ø?44 / 55 mm
  • Straight connector made of PE-HD, ø 90 mm
  • Adaptor socket made of PE-HD, ø 90 / 110 mm
  • 2 threaded rods M12
  • Sound insulation set
  • Female socket for mains connection
  • Power supply unit
  • Base cover
  • Fastening material for drywall
  • Fastening material
  • Fastening material for installation in front of concealed cisterns

Application purposes

  • For renovations, conversions and new buildings
  • For wall inlets with inlet height >23 cm
  • For replacing low-level exposed cisterns
  • For replacing half-high level exposed cisterns
  • For replacing wall-hung WCs with close-coupled exposed cistern
  • For replacing wall-hung WCs with pressure flushing valve
  • For replacing wall-hung WCs with concealed cistern with maximum service opening height< 109 cm
  • For Geberit AquaClean WC complete solutions
  • For connecting Geberit AquaClean WC enhancement solutions, with accessories
  • For mounting on finished floors
  • For installation in front of drywalls or solid walls
  • For compensating the offset between WC connections and wall drains

Spare Parts

Art. No. Description
243.440.TA.1 Cistern lid for Geberit Monolith sanitary module for WC: aluminium brushed
243.446.00.1 Technical cistern for Geberit Monolith sanitary module for WC
240.344.00.1 Damming device for Geberit exposed cistern AP140 and Geberit Monolith
243.442.00.1 Flush bend for Geberit Monolith sanitary modules for WCs
362.771.00.1 Lip seal for Geberit flush pipe: d=45mm
152.434.06.1 Geberit flush bend extension with sleeve: d=45mm
243.994.00.1 Set of consoles for Geberit Monolith sanitary modules for WCs and bidets
131.112.TA.1 Set of fixing bolts made of aluminium, for Geberit Monolith side cladding (2 pc.): aluminium brushed
243.042.JF.1 Set of fixing bolts made of plastic, for Geberit Monolith side cladding (2 pc.): mid-grey pearl mica
243.539.00.1 Side cladding set for Geberit Monolith sanitary module for WC, 114 cm
243.447.JF.1 Side part extension for Geberit Monolith sanitary module for WC and bidet: mid-grey pearl mica
243.444.JF.1 Cover, bottom, for Geberit Monolith sanitary module for floor-standing WC: mid-grey pearl mica
242.480.00.1 Fastening set for Geberit Monolith front cladding
242.389.00.1 Flush valve for Geberit Monolith sanitary module for WC
816.418.00.1 Flat gasket for Geberit flush valves of exposed and concealed cisterns
243.293.00.1 Basket for flush valve, for Geberit Monolith
242.985.00.1 Geberit fill valve type 380, lateral water supply connection, 3/8", nipple made of brass
242.983.00.1 Geberit fill valve type 380, lateral water supply connection, 3/8", nipple made of brass
242.984.00.1 Geberit fill valve type 380, lateral water supply connection, 3/8", nipple made of brass
Geberit fill valve type 380, side connection
242.670.00.1 Extension for flush valve, for Geberit Monolith sanitary module for WC, 114 cm
242.387.00.1 Actuation lever with console bracket, for Geberit Monolith sanitary module for WC
242.662.SI.1 Front cladding for Geberit Monolith sanitary module for wall-hung WC, 114 cm: glass / white
242.662.SJ.1 Front cladding for Geberit Monolith sanitary module for wall-hung WC, 114 cm: glass / black
242.662.SQ.1 Front cladding for Geberit Monolith sanitary module for wall-hung WC, 114 cm: glass / umber
242.662.TG.1 Front cladding for Geberit Monolith sanitary module for wall-hung WC, 114 cm: glass / sand
242.667.SI.1 Front cladding for Geberit Monolith sanitary module for floor-standing WC, 114 cm: glass / white
242.667.SJ.1 Front cladding for Geberit Monolith sanitary module for floor-standing WC, 114 cm: glass / black
242.667.SQ.1 Front cladding for Geberit Monolith sanitary module for floor-standing WC, 114 cm: glass / umber
242.667.TG.1 Front cladding for Geberit Monolith sanitary module for floor-standing WC, 114 cm: glass / sand
131.083.16.1 Geberit straight connector set for WC
131.088.29.1 Geberit Monolith S-bend set for wall-hung WC
Geberit Monolith connection set for floor-standing WC, with S-bend in ABS
131.082.16.1 Geberit connection set for floor-standing WC
Geberit Monolith connection set for floor-standing WC, with connection bend 90°
131.081.11.1 Geberit P-bend set for floor-standing WC
Geberit Monolith connection set for floor-standing WC, with P-bend
131.084.16.1 Geberit straight connector set for wall-hung WC
Geberit Monolith connection set for floor-standing WC, with straight connector
131.108.11.1 Geberit straight connector set for wall-hung WC, stepped by 7 cm
131.085.11.1 Geberit straight connector set for wall-hung WC, stepped by 3 cm
Geberit connector sets for floor-standing WC and wall-hung WC
388.352.29.1 Geberit connection set for wall-hung WC, with straight connector stepped by 5 cm
131.138.00.1 Bottom water supply connection set for Geberit Monolith sanitary module for WC, 114 cm
131.071.21.1 Lateral water supply connection set for Geberit Monolith sanitary module for WC: gloss chrome-plated
241.487.00.1 Geberit O-ring

Product Details

Art. no. Surface / Colour

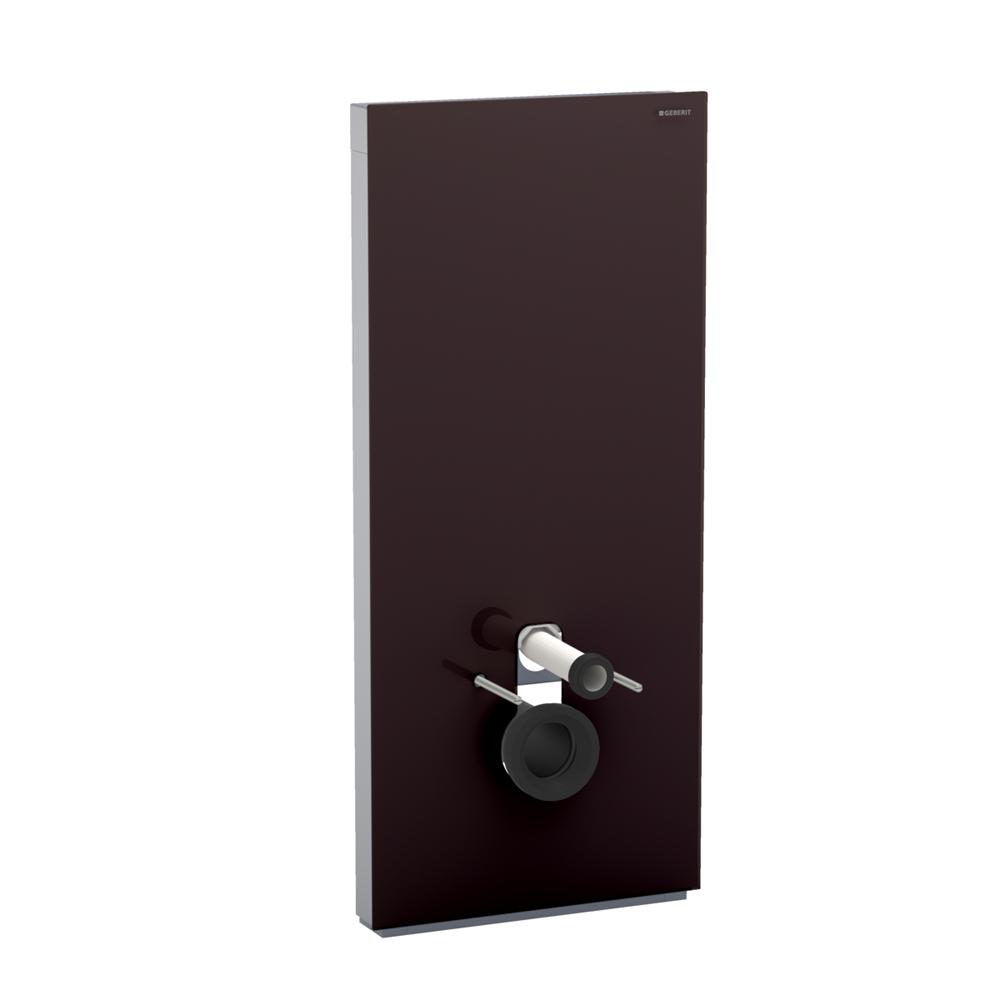

131.231.SQ.5 Glass / umber

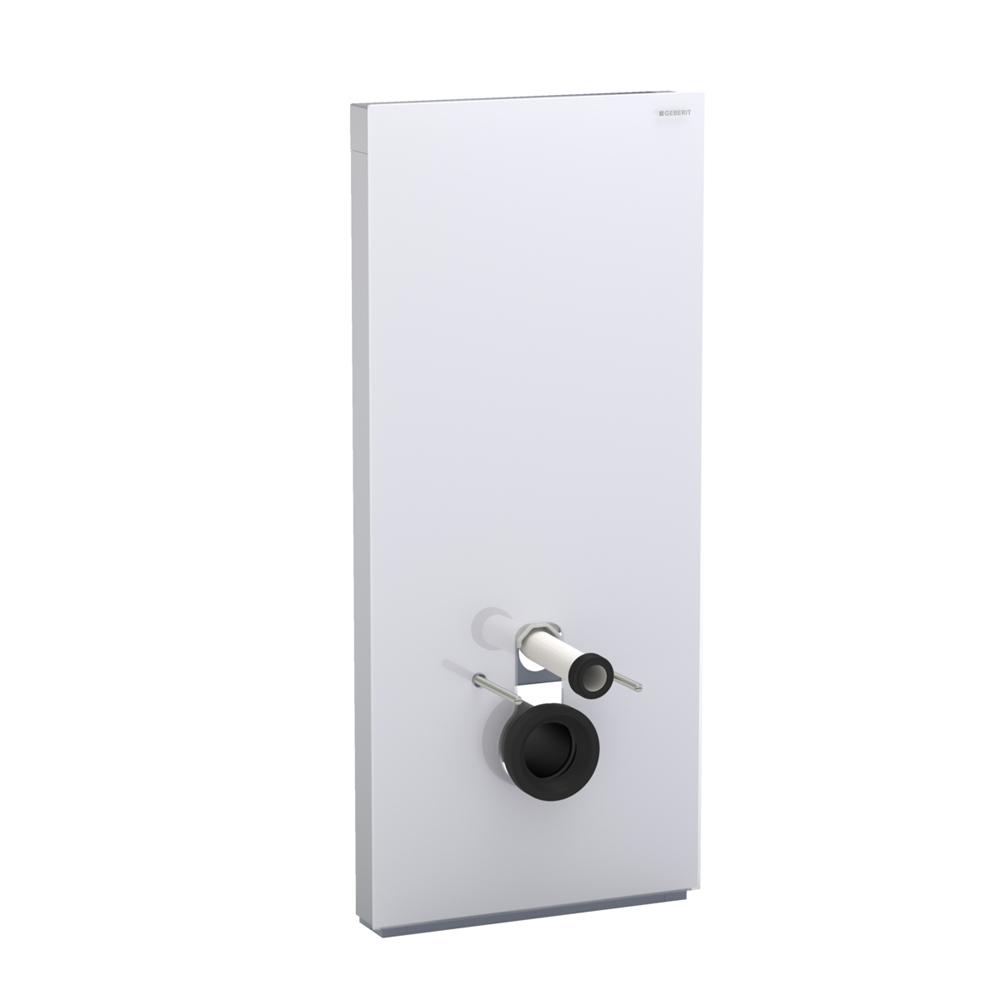

131.231.SI.5 Glass / white
131.231.TG.5 Glass / sand

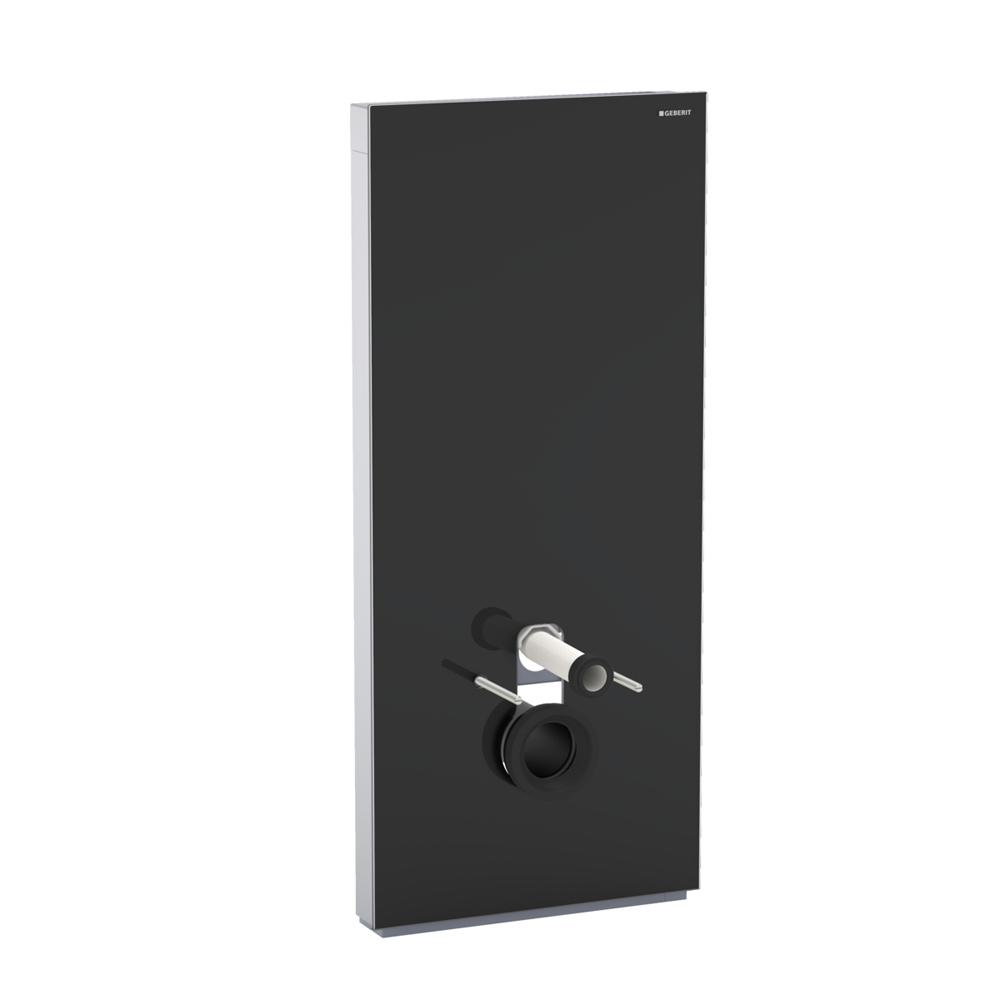

131.231.SJ.5 Glass / black

Downloads

Click for Data Sheet

Click for Installation instructions

Click for Installation instructions

Click for Installation instructions

Click for Installation instructions

Click for Maintenance manual

Click for Operating instructions

Click for Maintenance manual
