Description
Characteristics
- Service opening for trap, height-adjustable
- Integrated connection to drinking water supply
- Compensation of dimensional tolerances possible

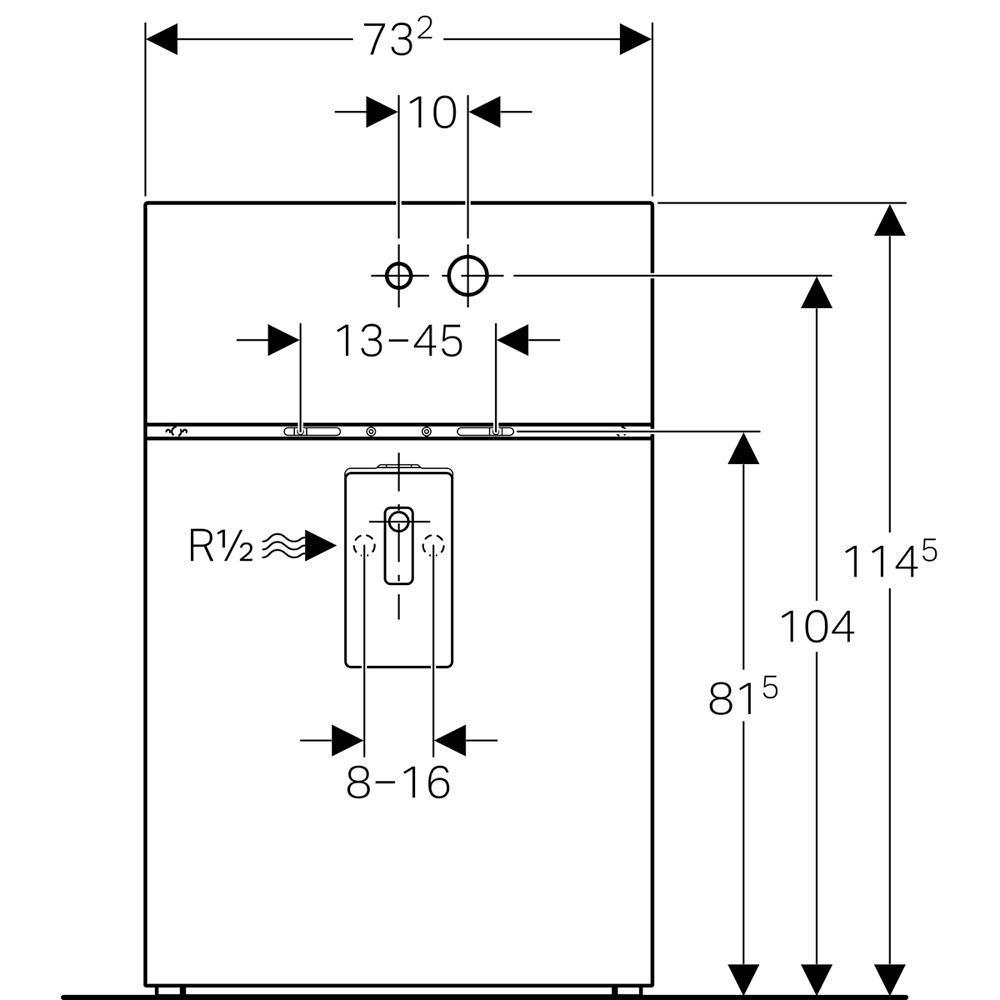

- Fastening distance for washbasin 13-31 cm, expandable to 45 cm
- Front cladding made of glass (ESG)

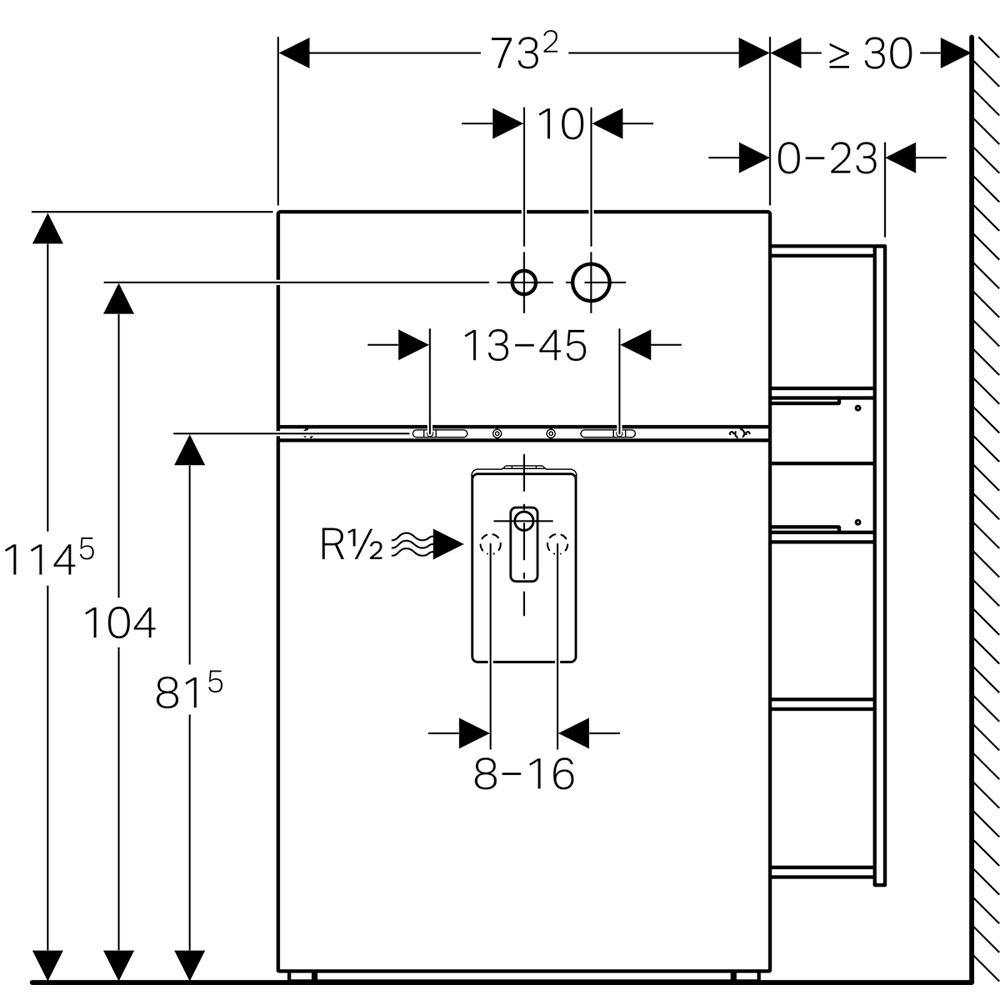

- Optional cargoes on both sides, left or right, or without cargo
- Integrated fastening rail for attaching washbasin and double towel rail
- Side cladding made of aluminium brushed
- Self-supporting
- Replaceable trap
- Trap hidden and easily accessible
- Predrilled for concealed tap for two-hole wall-mounted tap
Technical data
- Flow pressure : 1-10 bar
- Maximum thermal disinfection : 80 °C
Scope of delivery
- Washbasin element with front and side cladding
- Cover profile for fastening rail
- Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2" and G 3/8" and 2 angle stop valves, 1/2"
- Trap with straight connector and union nut G 1 1/4"
- Straight connector made of ASA, ø 32 mm
- Straight connector made of ASA, ø 40 mm
- Set of seals
- Fastening plate for mixer for two-hole wall-mounted tap
- Fastening material for solid wall
Application purposes
- For renovations, conversions and new buildings

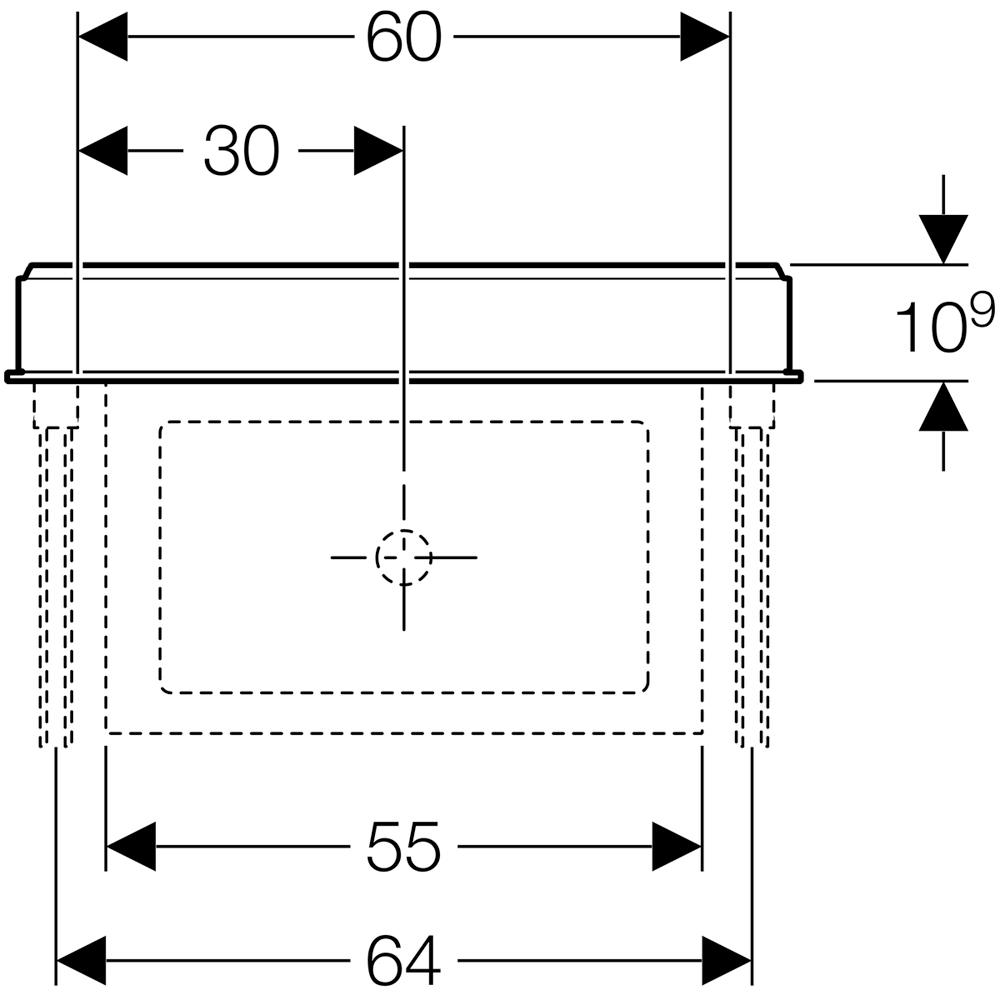

- For wall-hung washbasins with a width of up to 70 cm
- For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail
- For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail
- For concealed wall-mounted taps
- For replacing wall-hung washbasins
- For mounting on finished floors
Spare Parts
Art. No. | Description |
242.733.TA.1 | Cargo, left, for Geberit Monolith sanitary module for washbasin: aluminium brushed |
242.735.TA.1 | Cargo, right, for Geberit Monolith sanitary module for washbasin: aluminium brushed |
242.702.SI.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / white |
242.702.SJ.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / black |
242.702.SQ.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / umber |
242.702.TG.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / sand |
242.704.SI.1 | Service opening for deck-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / white |
242.704.SJ.1 | Service opening for deck-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / black |
242.704.SQ.1 | Service opening for deck-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / umber |
242.704.TG.1 | Service opening for deck-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / sand |
242.701.SI.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / white |
242.701.SJ.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / black |
242.701.SQ.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / umber |
242.701.TG.1 | 131.040.SI.1Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / sand |
242.778.11.1 | Sound insulation mat for Geberit Monolith sanitary module for washbasin: white alpine |
242.724.TA.1 | Cover profile for Geberit Monolith sanitary module for washbasin: aluminium brushed |
242.700.SI.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / white |
242.700.SJ.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / black |
242.700.SQ.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / umber |
242.700.TG.1 | Front cladding for Geberit Monolith sanitary module for washbasin, width 73 cm: glass / sand |
242.703.SI.1 | Service opening for wall-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / white |
242.703.SJ.1 | Service opening for wall-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / black |
242.703.SQ.1 | Service opening for wall-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / umber |
242.703.TG.1 | Service opening for wall-mounted taps, for Geberit Monolith sanitary module for washbasin: glass / sand |
242.731.TA.1 | Side cladding, bottom, for Geberit Monolith sanitary module for washbasin: aluminium brushed |
131.079.00.1 | Bottom water supply connection set for Geberit Monolith sanitary module for washbasin with wall-mounted tap |
243.749.00.1 | Water supply connection set for Geberit Monolith sanitary module for washbasin |
131.080.00.1 | Bottom water supply connection set for Geberit Monolith sanitary module for washbasin with deck-mounted tap |
131.087.00.1 | Trap set for Geberit Monolith sanitary module for washbasin |
242.730.TA.1 | Side cladding for Geberit Monolith sanitary module for washbasin: aluminium brushed |
242.793.00.1 | Push-to-open mechanism for Geberit Monolith sanitary module for washbasin |
242.732.TA.1 | Side cladding, top, for Geberit Monolith sanitary module for washbasin: aluminium brushed |
131.109.21.1 | Double towel rail for Geberit Monolith sanitary module for washbasin: gloss chrome-plated, L=34cm |
131.110.21.1 | Double towel rail for Geberit Monolith sanitary module for washbasin: gloss chrome-plated, L=44cm |
131.119.00.1 | Soap dispenser for Geberit Monolith sanitary module for washbasin |
Product Details
Art. no. | Surface / Colour | Mixer | Depth gauge | Cargo |
131.047.SI.1 | Glass / white | Left | 8 cm | Without |
131.047.SJ.1 | Glass / black | Left | 8 cm | Without |
131.047.SQ.1 | Glass / umber | Left | 8 cm | Without |
131.047.TG.1 | Glass / sand | Left | 8 cm | Without |
131.043.SI.1 | Glass / white | Right | 10 cm | Without |
131.046.SI.1 | Glass / white | Left | 8 cm | Left and right |
131.046.SJ.1 | Glass / black | Left | 8 cm | Left and right |
131.046.SQ.1 | Glass / umber | Left | 8 cm | Left and right |
131.046.TG.1 | Glass / sand | Left | 8 cm | Left and right |
131.045.SI.1 | Glass / white | Left | 8 cm | Right |
131.045.SJ.1 | Glass / black | Left | 8 cm | Right |
131.045.SQ.1 | Glass / umber | Left | 8 cm | Right |
131.045.TG.1 | Glass / sand | Left | 8 cm | Right |
131.044.SI.1 | Glass / white | Left | 8 cm | Left |
131.044.SJ.1 | Glass / black | Left | 8 cm | Left |
131.044.SQ.1 | Glass / umber | Left | 8 cm | Left |
131.044.TG.1 | Glass / sand | Left | 8 cm | Left |
131.042.SI.1 | Glass / white | Right | 10 cm | Left and right |
131.040.SQ.1 | Glass / umber | Right | 10 cm | Left |
Downloads
Click for Installation instructions
