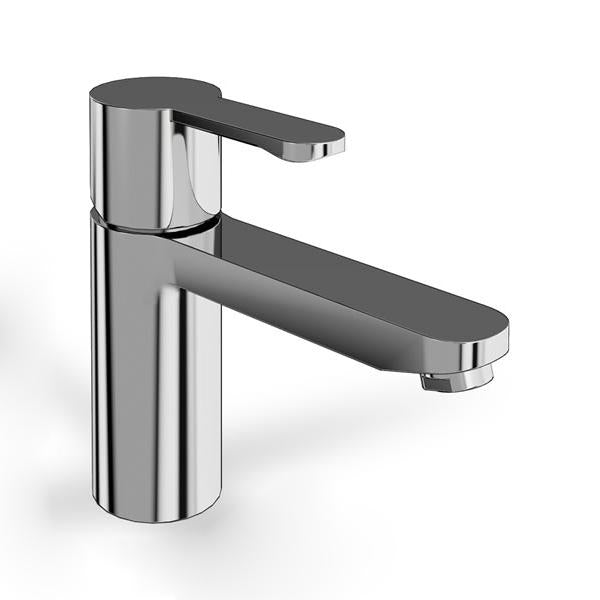

Clearwater Crystal Single-Lever Chrome plated Bath Filler

Save £92.00
Original price £369.00
Current price £277.00
CODE: CTA5

Description

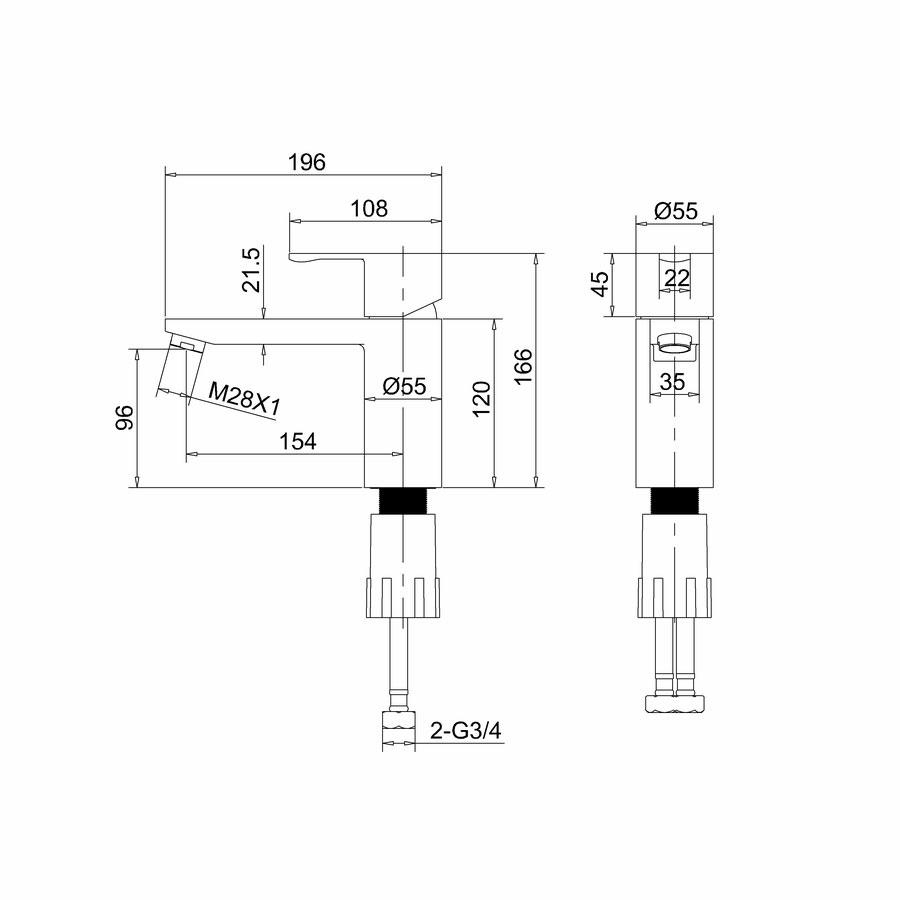

Illustrated Code

CTA5
  • CTA5: Crystal single lever bath filler

Additional Information

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

All mixers work on 0.2 bar to 5 bar pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
Chrome plated to EN248:2002
EN817:2008
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
EN200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (Straightener) 12.02 18.88 26.76 37 46.61
Spout (aerator) 7.62 11.87 16.75 23.56 28.97

Available Spare Parts

  • SP197: Aerator for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SPW4: Cap & grub screw for crystal taps
  • SP591: Cartridge for CTA5, CTA14
  • SP822: Fixing nut of product CTA1, CTA2, CTA3, CTA4, CTA5, CTA8, CTA9, CTA10, CTA11, CTA12, CTA13, CTA14
  • SP812: Flexible pipes (hot & cold) - pair for product CTA5, CTA14
  • SP196: Flow straightener for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14

Specification

Finish Chrome plated
Product Type Modern
Overall Height 166
Material Tap - Brass
Size 430 x 275 x 215mm
Barcode 5055806002791
Nett Weight Tap - 1.9kg
Gross Weight Including Packaging Tap - 2.2kg
Packed Dimension 430 x 275 x 215 = 0.0254 m3
Colour Tap - Chrome plated

Downloads

Click for Instructions CTA5 (English)

Click for Instructions CTA5 (French)
