Burlington Trent Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm

Save £164.00
Original price £658.00
Current price £494.00
CODE: TF1S+V60

Illustrated Code

TF1S+V60
  • TF1S: Trent Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm (excluding Shower Head)
  • V60: 12 inch shower rose
  • TOTAL: Code: TF1S+V60
TF1S+V16
  • TF1S: Trent Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm (excluding Shower Head)
  • V16: 6 inch shower rose
  • TOTAL: Code: TF1S+V16
TF1S+V17
  • TF1S: Trent Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm (excluding Shower Head)
  • V17: 9 inch shower rose
  • TOTAL: Code: TF1S+V17

Additional Information

Traditional brass faceplate, Claremont handle with ceramic lever.

390mm adjustable fixed shower arm

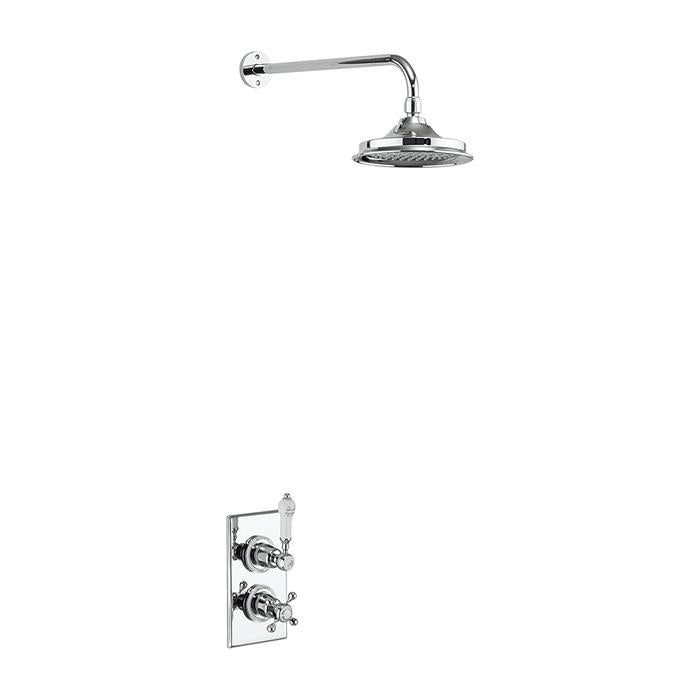

Image shown is with 6" Airburst shower head. (as shown on image)

The shower head has anti-limescale silicon nipples

Hot & cold inlet 3/4 female thread

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)

Available Spare Parts

  • SP723: Cartridge cap for TF1S, TF2S, TF3S, TF1H, VF1S, VF3S
  • SP163: Ceramic B indices with Chrome for V34 and V36
  • V10-1: Ceramic lever for shower valve (single)
  • SP52: Ceramic part of lever for Burlington showering products (plain version, without any texts)
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • SP164: Chrome linking splines and chrome for V34 & V36
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP608: Face plate for TF1S, TF1H, TF2S
  • SP478: Filter & washer for shower roses
  • SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
  • SP599: Grub screw (M4x4)
  • SP313: Hent F3 flow control cartridge
  • SP842: Inlet filter of product V50, V51, V52, TF1S, TF1H, TF2S, TF3S, VF1S, VF3S, ARC64, ARC73, ARC64 CHR, ARC73 CHR
  • SP746: Jointer of TF1S
  • SP753: Lever holder for Trent, Severn, Avon, Spey shower valves
  • SP726: Metal block for Trent, Severn, Eden, Spey shower valves
  • SP959: Retaining nut of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC73 CHR, ARC64, ARC64 CHR
  • SP815: Retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR
  • SP592: Top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
  • SP314: VQT1 temperature control cartridge

Specification

Product Type Traditional
Material TF1S: Valve - Brass with ceramic handle
V16: Shower rose - Brass
V17: Shower rose - Brass
V60: Shower rose - Brass

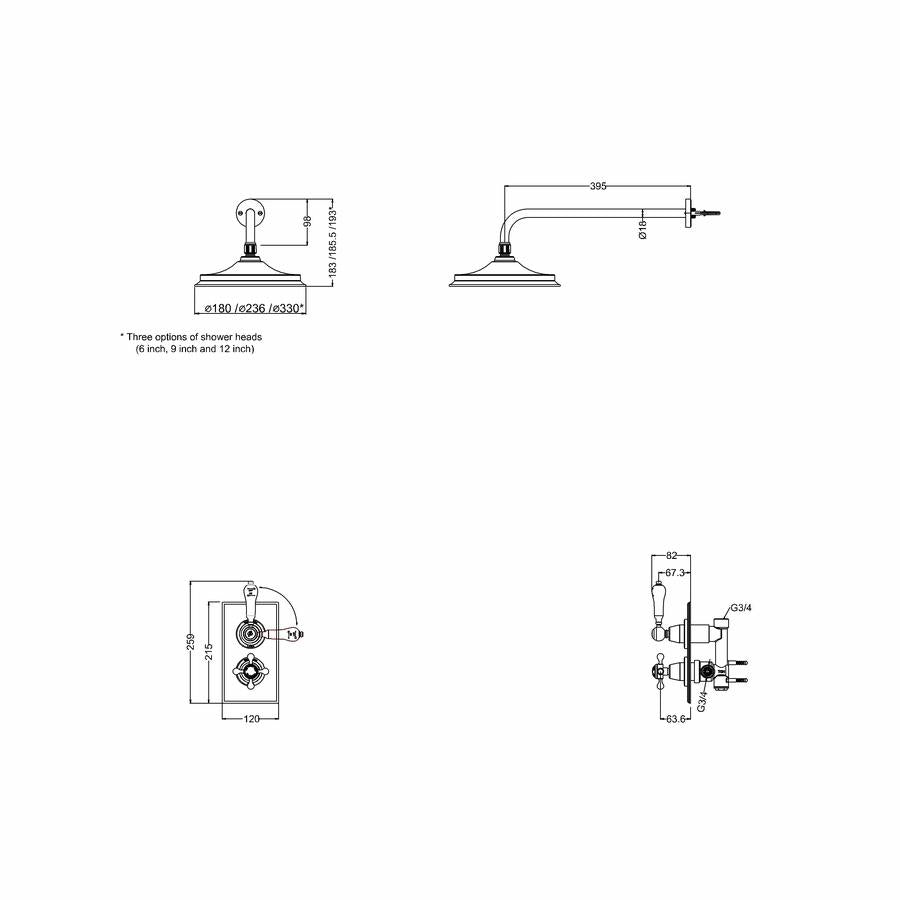

Size TF1S: 350 x 118 x 95mm
V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V60: 330.5 x 330.5 x 95mm
Nett Weight TF1S: Valve - 3.35kg
V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V60: Shower rose - 1.6kg
Gross Weight Including Packaging TF1S: Valve - 3.9kg
V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V60: Shower rose - 2.1kg
Packed Dimension TF1S: 645 x 215 x 135 = 0.0187 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour TF1S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated
Barcode V60: 5055806013759
TF1S: 5055806015401
V16: 5055806007888
V17: 5055806007895
Packed Dimension TF1S: 645 x 215 x 135 = 0.0187 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour TF1S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated

Downloads

Click for Instructions V60 (English)

Click for Instructions TF1S (English)

Click for Instructions V60 (French)

Click for Instructions TF1S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions TF1S (French)
