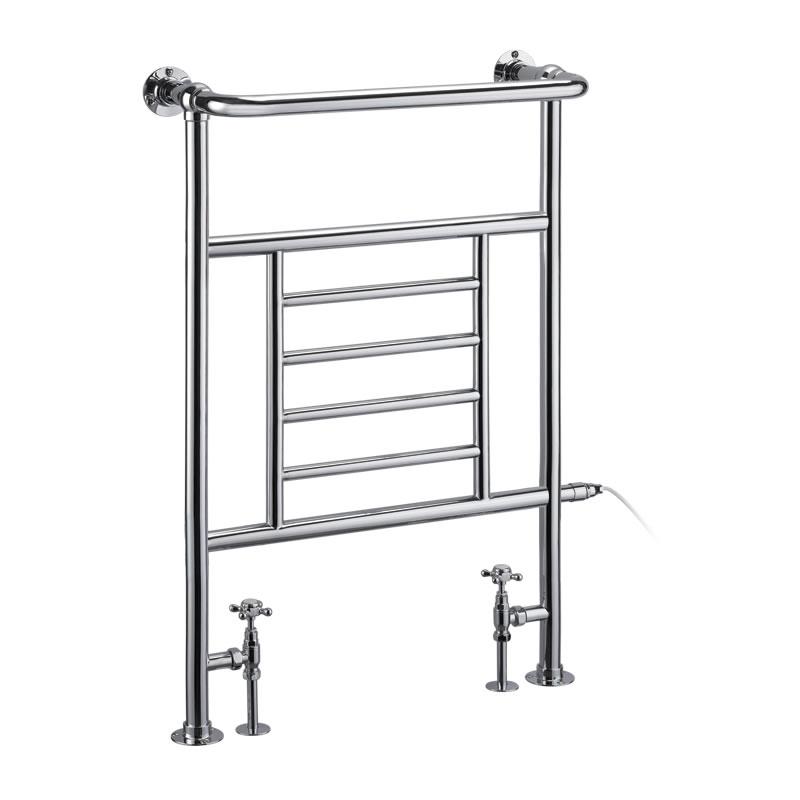

Burlington Traditional Vincent Radiator with Angled Valves

Save £132.00
Original price £529.00
Current price £397.00
CODE: R5 CHR

Illustrated Code

R5 CHR
  • R5 CHR: Vincent - chrome

Additional Information

Diameter of tubes is 32mm.

Output:1101 BTUs/266 watts (?T=50?)

Distance from wall to the rail is 110mm.

Fill the radiator approximately 90% (2.6L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system)

Includes all brackets and fixings.

High quality chrome plated finish.

Valves are required. These are not included.

Designed to be plumbed into your central heating system.

Operating pressure up to 8 bar.(Certified by BEN N.L)

Maximum working temperature:95?

420mm plumbing pipe centers

for technical information on the summer heating kit please refer to the summer heating kit section

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS EN442-1:2003 Specification for radiators and convectors. Technical specifications and requirements
BS EN442-2:2003 Specification for radiators and convectors. Test methods and rating
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr

Compatible Products

  • R6 CHR: Angled radiator valves

Available Spare Parts

  • SP801: Air valve for Burlington radiators
  • SP917: Screw pack of Burlington radiators

Specification

Product Type Traditional
Overall height 95cm
Material Radiator - Steel

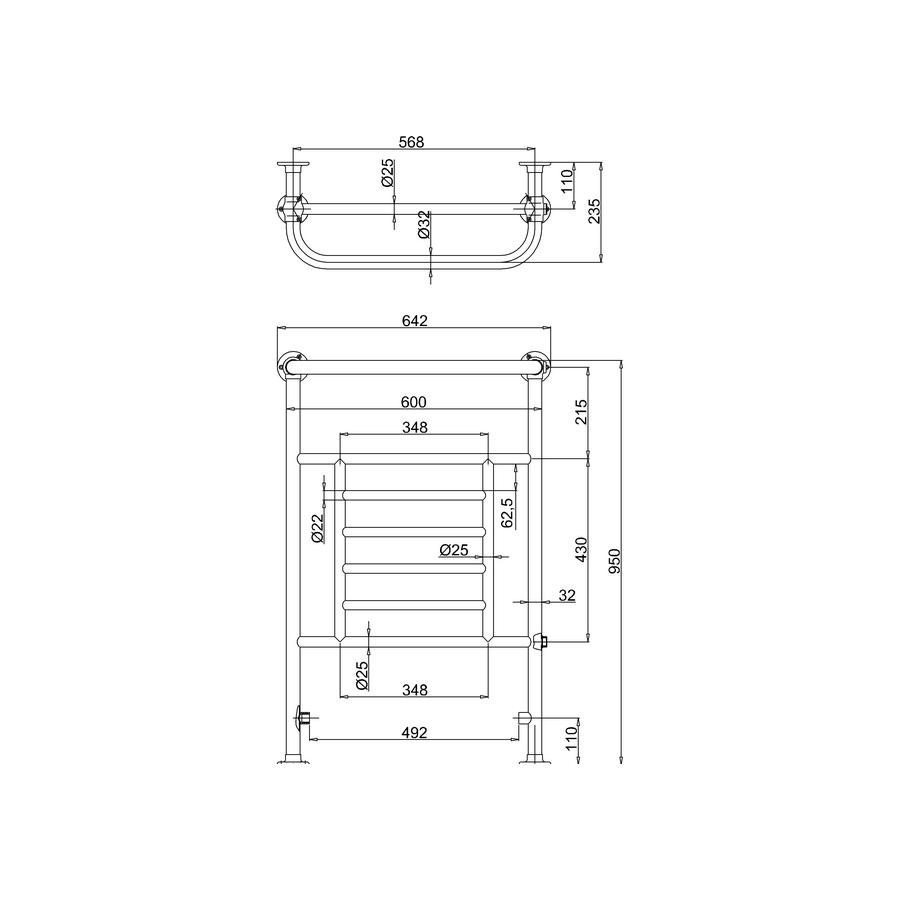

Size 950 x 600 x 235mm
Nett Weight Radiator - 6.7kg
Gross Weight Including Packaging Radiator - 8.5kg
Packed Dimension 980 x 670 x 170 = 0.1116 m3
Colour Radiator - Chrome
Barcode 5055806006133
Packed Dimension 980 x 670 x 170 = 0.1116 m3
Colour Radiator - Chrome

Downloads

Click for Instructions R5 CHR (French)
