Description
Illustrated Code

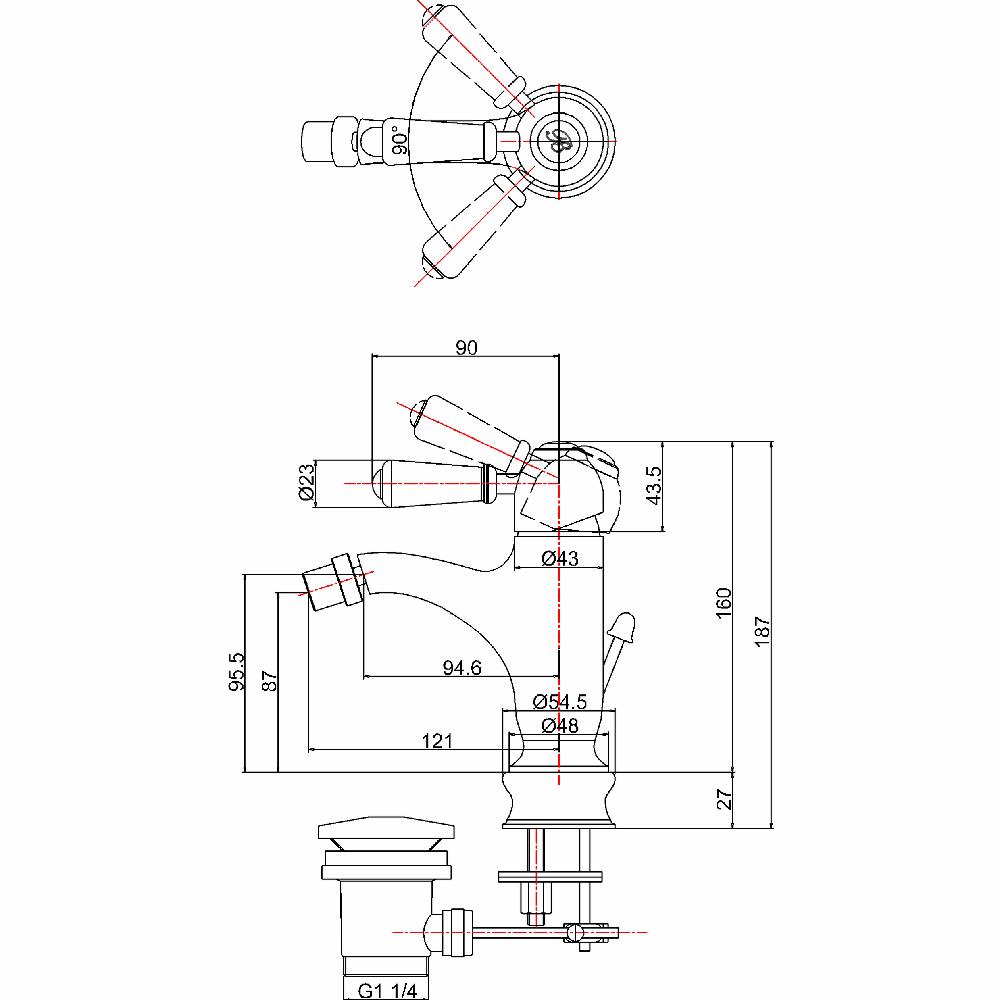

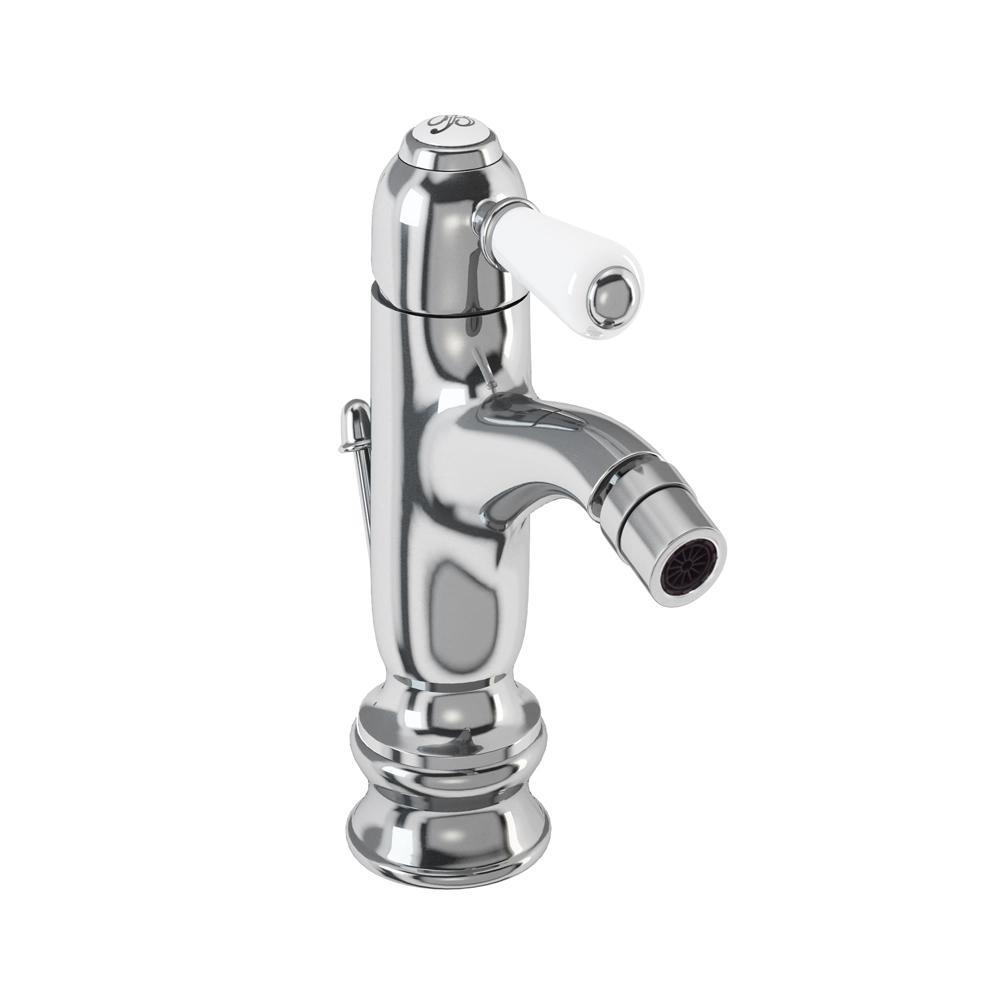

CH23- CH23: Chelsea curved bidet mono tap with pop up waste
- T4B: Regent small single tap base (for basin & bidet monoblocs - single)
- TOTAL: Code: CH23
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Guarantee
10 years domestic installations1 year commercial installations
Standards Information
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Available Spare Parts
- SP450: Aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
- SP47: B logo ceramic indice (D=21.4mm) for V12, CH19, R6 CHR, R7 CHR
- SP579: Cartridge of product CH19, CH20, CH21, CH22, CH23
- SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
- SP825: Lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
- SP655: Pair of flexible hose for T12, T13, CH19, CH20, CH21, CH22, CH23
- SP974: Plug of pop up waste for product T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
- SP807: Pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
- SP942: Tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
Specification
Product Type | Traditional |
Material | CH23: Tap - Brass T4B: Regent tap base - Brass |
Size | CH23: 205 x 145 x 47mm T4B: 545 x 545 x 273mm |
Nett Weight | CH23: Tap - 1.55kg T4B: Regent tap base - 0.15kg |
Gross Weight Including Packaging | CH23: Tap - 1.9kg T4B: Regent tap base - 0.25kg |
Packed Dimension | CH23: 320 x 235 x 105 = 0.0079 m3 T4B: 110 x 70 x 88 = 0.0007 m3 |
Colour | CH23: Tap - Chrome plated T4B: Regent tap base - Chrome plated |
Barcode | T4B: 5055806007345 CH23: 5055806002562 |
Packed Dimension | CH23: 320 x 235 x 105 = 0.0079 m3 T4B: 110 x 70 x 88 = 0.0007 m3 |
Colour | CH23: Tap - Chrome plated T4B: Regent tap base - Chrome plated |
