Burlington Severn Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm

Save £164.00
Original price £658.00
Current price £494.00
CODE: VF1S+V60

Illustrated Code

VF1S+V60
  • VF1S: Severn Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm (excluding Shower Head)
  • V60: 12 inch shower rose
  • TOTAL: Code: VF1S+V60
VF1S+V16
  • VF1S: Severn Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm (excluding Shower Head)
  • V16: 6 inch shower rose
  • TOTAL: Code: VF1S+V16
VF1S+V17
  • VF1S: Severn Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm (excluding Shower Head)
  • V17: 9 inch shower rose
  • TOTAL: Code: VF1S+V17

Additional Information

Traditional brass faceplate, Claremont handle, with ceramic lever

390mm adjustable fixed shower arm

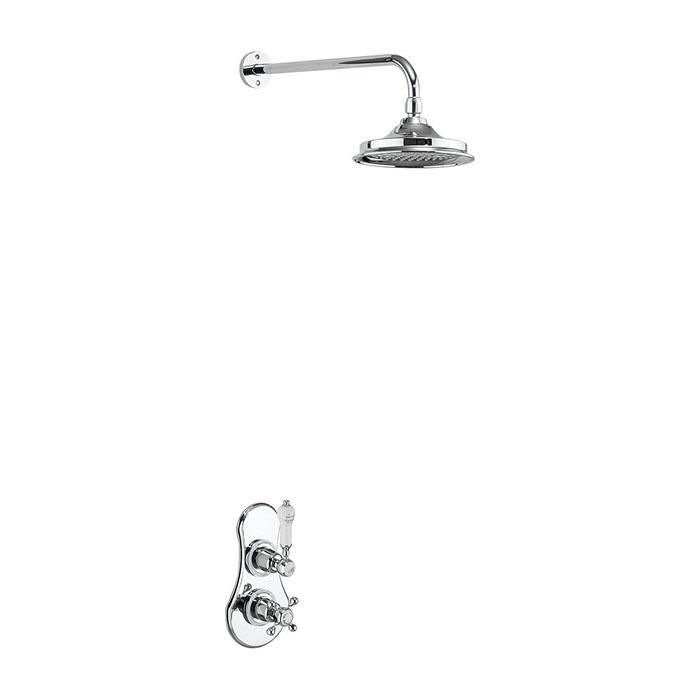

Image shown is with 6" Airburst shower head. (as shown on image)

The shower head has anti-limescale silicon nipples.

Hot & cold inlet 3/4 female thread

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)

Available Spare Parts

  • V10-1: Ceramic lever for shower valve (single)
  • SP52: Ceramic part of lever for Burlington showering products (plain version, without any texts)
  • SP614: Ceramic ring for Trent, Severn, Spey
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP609: Face plate for VF1S
  • SP606: Face plates for SF1S, VF1S
  • SP478: Filter & washer for shower roses
  • SP599: Grub screw (M4x4)
  • SP313: Hent F3 flow control cartridge
  • SP842: Inlet filter of product V50, V51, V52, TF1S, TF1H, TF2S, TF3S, VF1S, VF3S, ARC64, ARC73, ARC64 CHR, ARC73 CHR
  • SP753: Lever holder for Trent, Severn, Avon, Spey shower valves
  • SP959: Retaining nut of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC73 CHR, ARC64, ARC64 CHR
  • SP815: Retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR
  • SP592: Top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
  • SP314: VQT1 temperature control cartridge

Specification

Product Type Traditional
Material V16: Shower rose - Brass
V17: Shower rose - Brass
V60: Shower rose - Brass
VF1S: Valve - Brass
Size V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V60: 330.5 x 330.5 x 95mm
VF1S: 63.8 x 126 x 260mm
Nett Weight V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V60: Shower rose - 1.6kg
VF1S: Valve - 3.43kg
Gross Weight Including Packaging V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V60: Shower rose - 2.1kg
VF1S: Valve - 3.98kg
Packed Dimension V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
VF1S: 645 x 215 x 135 = 0.0187 m3
Colour V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated
VF1S: Valve - Chrome plated
Barcode V60: 5055806013759
VF1S: 5055806015432
V16: 5055806007888
V17: 5055806007895
Packed Dimension V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
VF1S: 645 x 215 x 135 = 0.0187 m3
Colour V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated
VF1S: Valve - Chrome plated

Downloads

Click for Instructions V60 (English)

Click for Instructions VF1S (English)

Click for Instructions V60 (French)

Click for Instructions VF1S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions VF1S (French)
