Burlington 3 Tap Hole Thermostatic Mixer with Pop Up Waste

Save £100.90
Original price £405.90
Current price £305.00
CODE: AN29

Illustrated Code

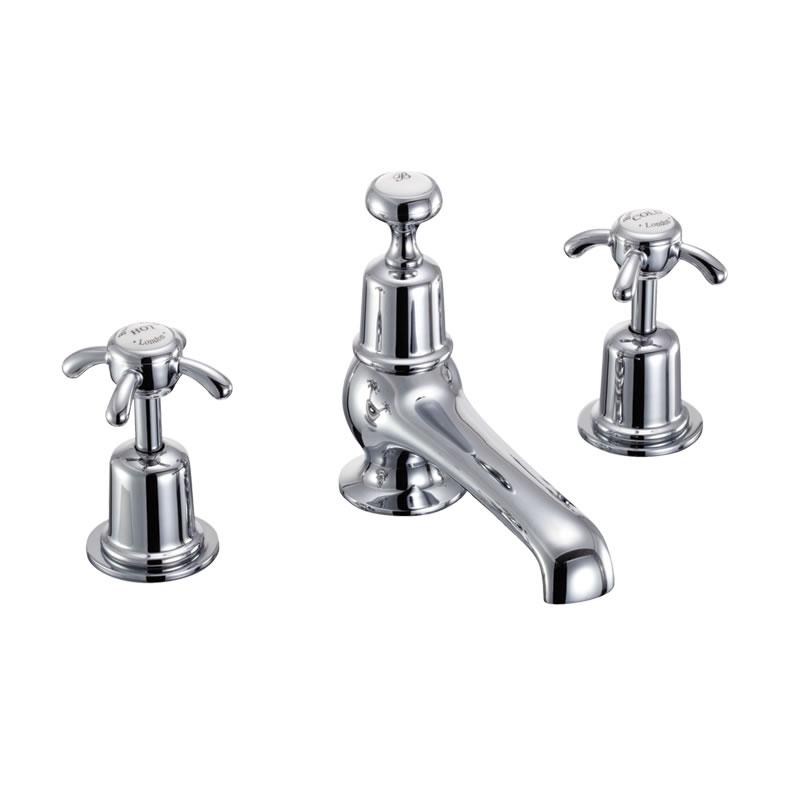

AN29
  • T2: Anglesey tap handles (pair)
  • T26: Thermostatic Three Tap Hole tap, with pop up (excluding tap heads & base)

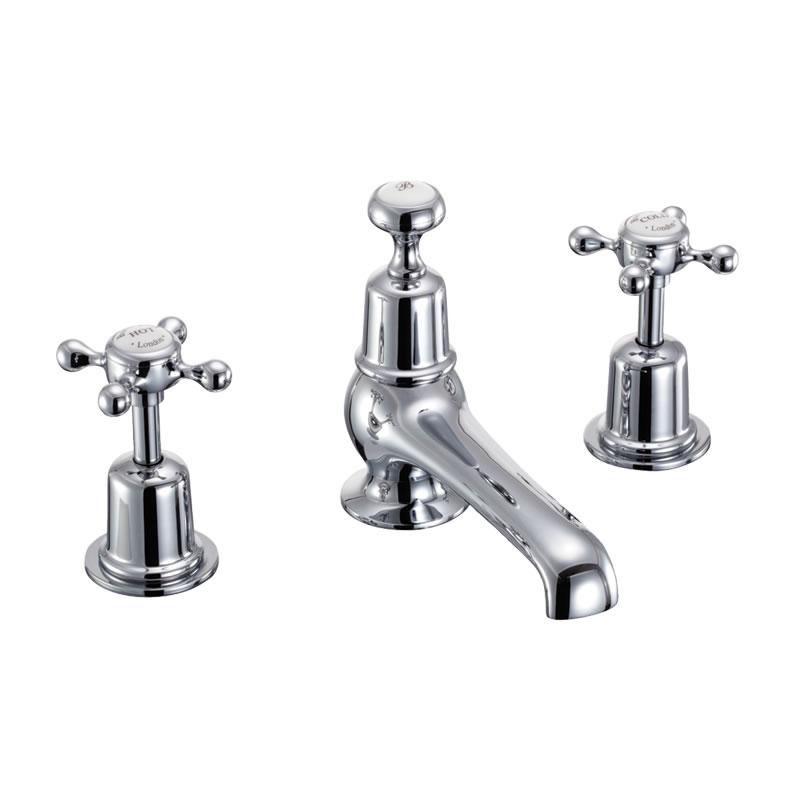

CL29
  • T1: Claremont tap handles (pair)
  • T26: Thermostatic Three Tap Hole tap, with pop up (excluding tap heads & base)

Details

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

This tap is not compatible with kensington tap handles

The right hand side is the on/off control and the left hand side is the thermostatic mixer valve

This comforms to TMV 2 standards

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
TMV 2

Available Spare Parts

SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP315: Hent F2 flow control cartridge
SP749: HOT, COLD indice for T26
SP863: Metal block of product T26
SP750: ON, OFF indice for T26
SP634: Pair of flexible hoses for T14-QT, T14, T26 (360mm)
SP889: Pop up basin waste of product T14, T14-QT, T26 (excluding the vertical pop up waste control rod)
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
SP314: VQT1 temperature control cartridge

Specifications

Product Finish Chrome Plated
Product Style Traditional
Material T1: Tap handles - Brass
T2: Tap handles - Brass
T26: Tap - Brass

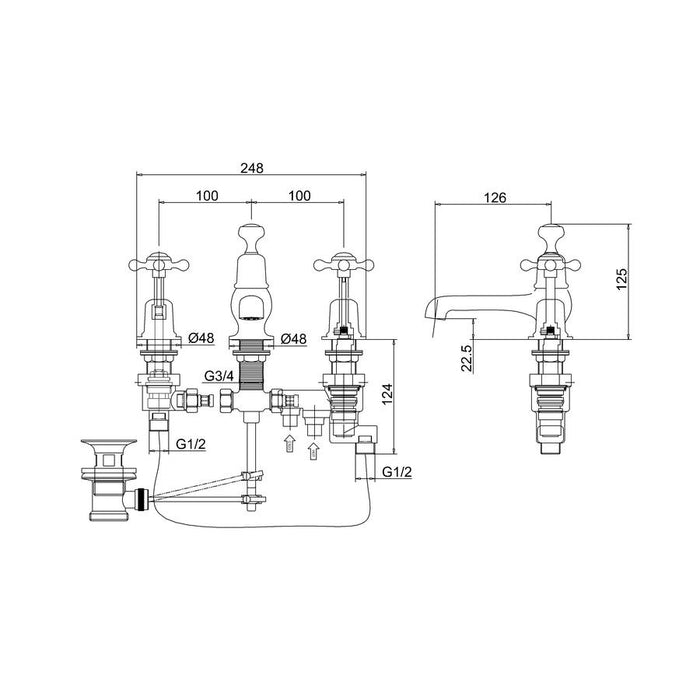

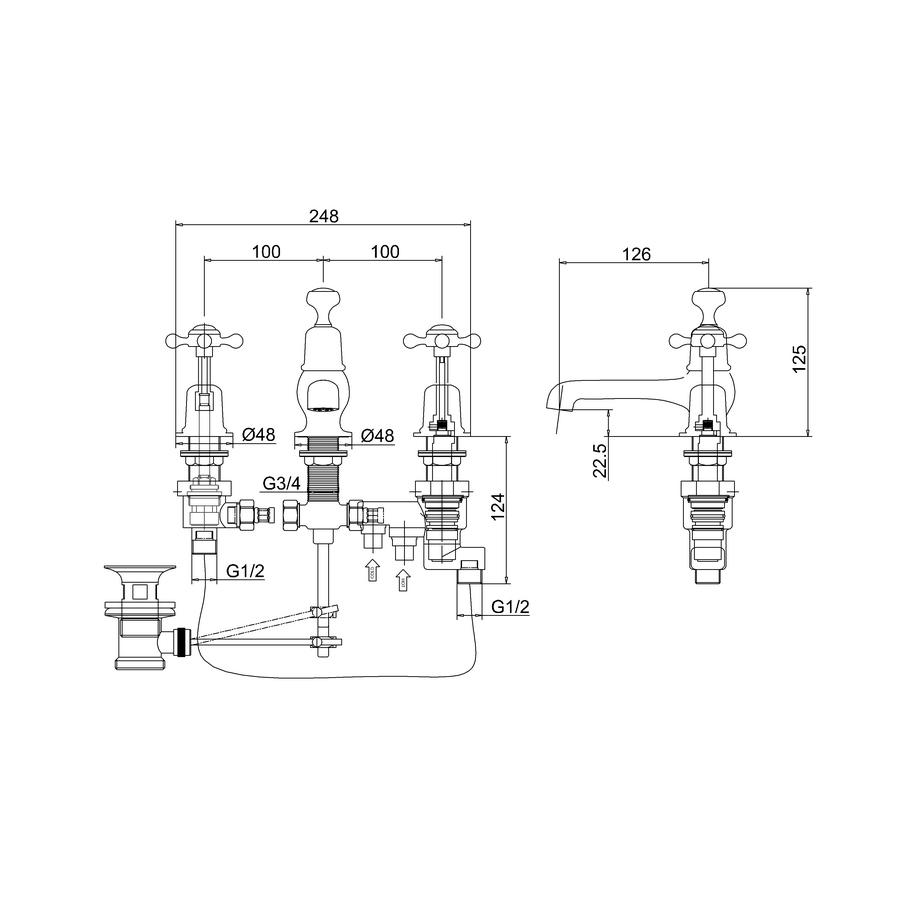

Size T1: 267 x 267 x 65mm
T2: 64 x 64 x 237mm
T26: 122.3 x 248 x 126mm
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T2: 52 x 52 x 65 = 0.0002 m3
T26: 382 x 350 x 83 = 0.0111 m3
Colour T2: Tap handles - Chrome plated
Barcode T2: 5055806006928
T26: 5055806018969
T1: 5055806006683
Flow Rates System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straigthener) 9.5 15.8 17.2 19.3 21.2
Spout (aerator) 4.1 7.7 8.9 10.6 11.6
Nett Weight T1: Tap handles - 0.18kg
T2: Tap handles - 0.15kg
T26: Tap - 3.2kg
Gross Weight Including Packaging T1: Tap handles - 0.2kg
T2: Tap handles - 0.2kg
T26: Tap - 3.65kg

Downloads

Click for Instructions T26 (English)

Click for Instructions T26 (French)
