Description
Product Description

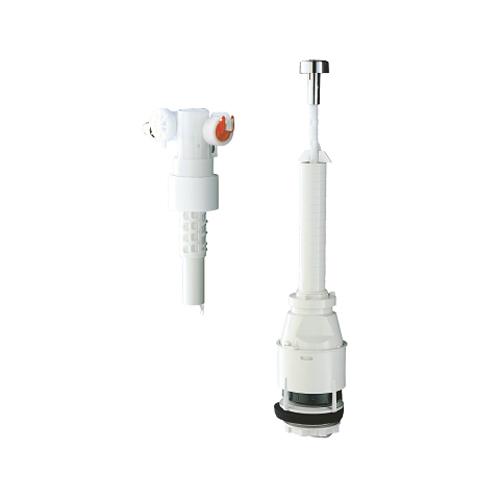

- Retrofit unit for close-coupled
- Flushing cisterns
- Connection from the side
- With filling valve, servo discharge valve
- Interruptible flush cycle
- Fixing set with 100 mm screws and cellular rubber joint 100 mm dia.
- Centring for filling and discharge valve
- When having larger bore holes
- GROHE StarLight chrome finish
- **) max. shortening 100 mm
Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Filling valve | 37095000 |
| 1.1 | Lever | 43734000 |
| 1.1.1 | Sealing washer | 4377000M |
| 1.2 | Valve head | 43536000 |
| 1.3 | Membrane | 4375800M |
| 1.4 | Screw cap | 43735000 |
| 1.5 | Valve FLOAT, 5 pcs.. | 4379100M |
| 1.6 | Dummy plug and escutcheon cap | 37125000 |
| 1.7 | Compression nut | 43258000 |
| 1.8 | Throttle | 42356000 |
| 1.9 | Repl.kit f.seal | 43722000* |
| 2 | Push button and escutcheon | 37117PI0 |
| 3 | Push bar 350 mm | 43535000 |
| 4 | Pop-up rod | 43540000 |
| 5 | Servo discharge valve | 43486000 |
| 5.1 | Outlet piston | 43544000 |
| 5.1.1 | Sealing washer | 43808000 |
| 6 | Seat | 43533000 |
| 7 | Sealing washer | 43745000 |
| 8 | Nut | 43311000 |
| 9 | Fastening set | 43741000 |
